CXG1125ER

Features:

• Low insertion loss: 0.5dB @900MHz, 0.7dB @1.5GHz
• High linearity: Harmonic < 65dBc
• CMOS compatible input control
• Small package: 24-pin VQFN (4.0mm * 4.0mm)


Application

6 × 4 antenna switch for digital cellular such as PDC handsets

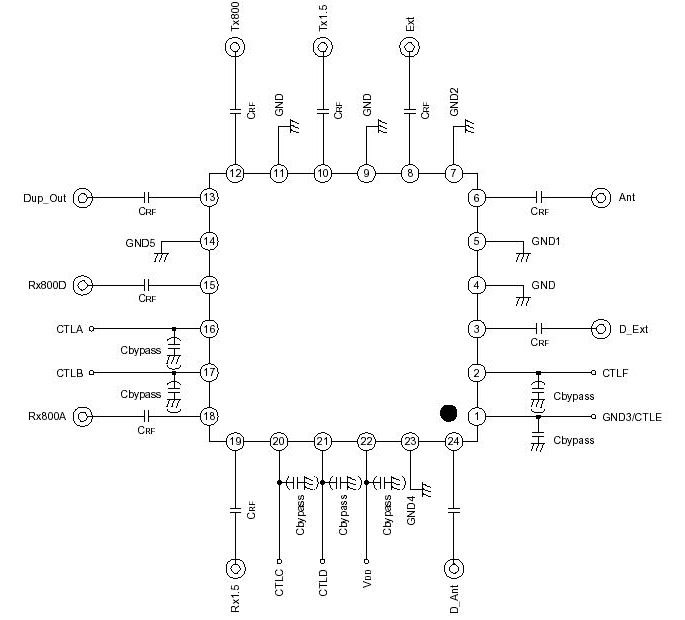

Pinout




Specifications

• Bias voltage                                                  V_DD 7 V
• Control voltage                                               V_ctl 5 V
• Operating temperature              T_opr 35 to +85 °C
• Storage temperature                T_stg 65 to +150 °C


Description

The CXG1125ER is a high power antenna switch MMIC for PDC dual 800MHz and 1.5GHz. This IC is suited to connect 2Tx/3Rx to one of 4 antennas equipped with full packet mode. The CXG1125ER has on-chip logic circuit for operation with 6 CMOS inputs. The Sony's GaAs J-FET process is used for low insertion loss and low voltage operation.
