CXG1122EN

Features: • Insertion loss: (Tx) 0.5dB typ. at 34dBm (GSM900)• 3 CMOS compatible control lines• Low second harmonic: 40dBm typ. at 34dBm (GSM900)• Small package size: 16-pin VSON (2.7mm * 3.5mm * 0.9mm)Application• GSM900/DCS1800/PCS1900• GPRS• DECTPinoutS...

product image

CXG1122EN Picture
See larger image
SeekIC No. : 004318663 Detail

CXG1122EN: Features: • Insertion loss: (Tx) 0.5dB typ. at 34dBm (GSM900)• 3 CMOS compatible control lines• Low second harmonic: 40dBm typ. at 34dBm (GSM900)• Small package size: 16-pin ...

CXG1122EN Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXG1122EN
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Insertion loss: (Tx) 0.5dB typ. at 34dBm (GSM900)
• 3 CMOS compatible control lines
• Low second harmonic: 40dBm typ. at 34dBm (GSM900)
• Small package size: 16-pin VSON (2.7mm * 3.5mm * 0.9mm)


Application

• GSM900/DCS1800/PCS1900
• GPRS
• DECT


Pinout

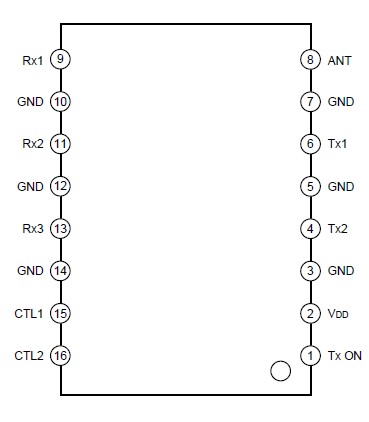

Connection Diagram


Specifications

Bias voltage VDD 7 V
Control voltage VCTL 5 V
Operating temperature Topr 20 to +80 °C



Description

The CXG1122EN is one of a range of low insertion loss, high power MMIC antenna switches for GSM/ GPRS triple-band, dual-band (CXG1121TN) and applications. The low insertion loss on transmit means increased talk time as the Tx power amplifier can be operated at a lower output level. On-chip logic reduces the component count and simplifies the PCB layout by allowing the direct connection of the switch to digital baseband control lines with the CMOS logic levels.

This switch is an SP5T, one antenna can be routed to either of the 2 Tx or 3 Rx ports. It requires 3 CMOS control lines (CTL1, CTL2 and Tx ON).

The Sony's GaAs JFET process CXG1122EN is used for low insertion loss. An evaluation PCB is available
