Features:

• Single power supply operation:
V_DD1 = V_DD2 = 3.5V (High mode), 1.7V (Low mode), V_GG = 2.95V
• Ultrasmall package: 0.065cc (6.2mm * 6.2mm * 1.7mm)
• High efficiency: add = 36.5% (@900MHz, P_OUT = 27.5dBm)
• Output power (high/low mode switching supported):
P_OUT 19dBm: Low mode (V_DD1 = V_DD2 = 1.7V)
P_OUT = 19 to 27.5dBm: High mode (V_DD1 = V_DD2 = 3.5V)
• Gain: Gp = 26dB (@900MHz)

Application

Power amplifier for JCDMA system cellular phones

Pinout

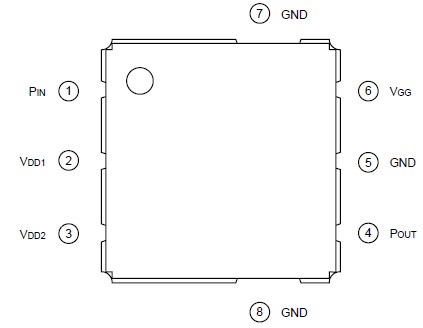

Connection Diagram

Specifications

Operating case temperature	T_case	30 to +85	°C
Storage temperature	T_stg	30 to +125	°C
Bias voltage	V_DD1, V_DD2	6	V
Bias voltage	V_GG	3.3	V
Input power	P_IN	8	dBm

Description

The CXG1117K is the power amplifier module which operates at a single power supply. This IC is designed using the Sony's original p-Gate HFET process.
