Features:

• High conversion gain: Gp = 16.5 to 17dB (LNA Typ.) Gc = 9.5 to 10dB (MIX Typ.)
• Low noise figure: NF = 1.5dB (LNA Typ.) NF = 4 to 5dB (MIX Typ.)
• Single 3V power supply operation
• Low LO input power operation PLO = 12.5dBm
• Single CTL pin achieved by the built-in inverter circuit
• 16-pin VSON package


Application

800MHz Japan digital cellular telephones (PDC)


Pinout

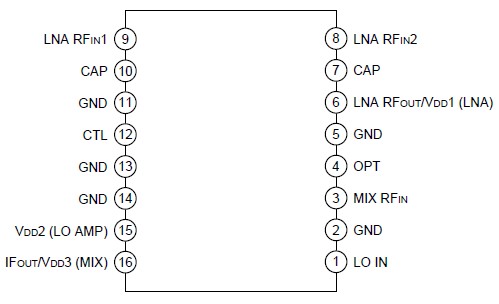

Connection Diagram


Specifications

Supply voltage

VDD

4.5

V

Input power

PIN

+13

dBm

Current consumption

IDD

15

mA

Operating temperature

Topr

35 to +85

°C

Storage temperature

Tstg

65 to +150

°C




Description

The CXG1109EN is a receive dual low noise amplifier/ mixer MMIC. This IC is designed using the Sony's GaAs J-FET process
