Features: • Single power supply operation: VDD1 = VDD2 = 3.5V, VGG = 2.95V (@High mode), VGG = 2.7V (@Low mode)• Ultrasmall package: 0.065cc (6.2mm * 6.2mm * 1.7mm)• High efficiency: add = 37.5% (@900MHz, POUT = 27dBm)• Output power (high/low mode switching supported): POUT...

product image

CXG1108K Picture
See larger image
SeekIC No. : 004318657 Detail

CXG1108K: Features: • Single power supply operation: VDD1 = VDD2 = 3.5V, VGG = 2.95V (@High mode), VGG = 2.7V (@Low mode)• Ultrasmall package: 0.065cc (6.2mm * 6.2mm * 1.7mm)• High efficienc...

CXG1108K Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXG1108K
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single power supply operation:
   VDD1 = VDD2 = 3.5V,
   VGG = 2.95V (@High mode),
   VGG = 2.7V (@Low mode)
• Ultrasmall package: 0.065cc (6.2mm * 6.2mm * 1.7mm)
• High efficiency: add = 37.5% (@900MHz, POUT = 27dBm)
• Output power (high/low mode switching supported):
   POUT 17dBm: Low mode (VGG = 2.7V)
   POUT = 17 to 27dBm: High mode (VGG 2.95V)
• Gain: Gp = 26dB (@900MHz)


Application

Power amplifier for JCDMA system cellular phones


Pinout

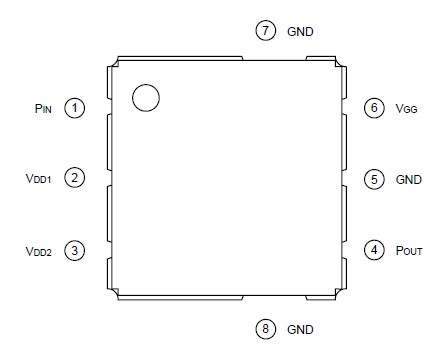

Connection Diagram


Specifications

Operating case temperature

Tcase

30 to +85

°C

Storage temperature

Tstg

30 to +125

°C

Bias voltage

VDD1, VDD2

6

V

Bias voltage

VGG

3.3

V

Input power

PIN

8

dBm




Description

The CXG1108K is the power amplifier module which operates at a single power supply. This IC is designed using the Sony's original p-Gate HFET process.
