CXG1082EN

Features: • High conversion gain:Gp = 17dB (LNA Typ.) Gc = 11 to 12dB (MIX Typ.)• Low noise figure: NF = 1.5dB (LNA Typ.) NF = 4.2dB (MIX Typ.)• Single 3V power supply operation• Low LO input power operation PLO = 15dBm• Single CTL pin achieved by the built-in inverte...

product image

CXG1082EN Picture
See larger image
SeekIC No. : 004318648 Detail

CXG1082EN: Features: • High conversion gain:Gp = 17dB (LNA Typ.) Gc = 11 to 12dB (MIX Typ.)• Low noise figure: NF = 1.5dB (LNA Typ.) NF = 4.2dB (MIX Typ.)• Single 3V power supply operation...

CXG1082EN Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXG1082EN
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High conversion gain:Gp = 17dB (LNA Typ.) Gc = 11 to 12dB (MIX Typ.)
• Low noise figure: NF = 1.5dB (LNA Typ.) NF = 4.2dB (MIX Typ.)
• Single 3V power supply operation
• Low LO input power operation PLO = 15dBm
• Single CTL pin achieved by the built-in inverter circuit
• 16-pin VSON package


Application

800MHz Japan digital cellular telephones (PDC)

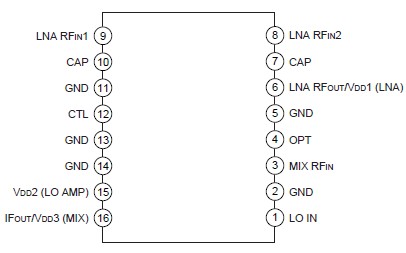

Pinout

Connection Diagram


Specifications

Supply voltage

VDD

4.5

V

Input power

PIN

+13

dBm

Current consumption

IDD

15

mA

Operating temperature

Topr

35 to +85

°C

Storage temperature

Tstg

65 to +150

°C




Description

The CXG1082EN is a receive dual low noise amplifier/ mixer MMIC. This IC is designed using the Sony's GaAs J-FET process.
