CXG1077TN

Features: • Low control voltage Vctl (H) =2.8 V• Low control current Ictl=30 A (Typ.) @2.8 V• Low insertion loss 0.35 dB (Typ.) @900 MHz• High power handling P1dB: 33 dBm (Typ.) @900 MHz• High intercept point Ip3=60 dBm (Typ.)• Small package TSSOP-10pinApplicati...

product image

CXG1077TN Picture
See larger image
SeekIC No. : 004318646 Detail

CXG1077TN: Features: • Low control voltage Vctl (H) =2.8 V• Low control current Ictl=30 A (Typ.) @2.8 V• Low insertion loss 0.35 dB (Typ.) @900 MHz• High power handling P1dB: 33 dBm (Ty...

CXG1077TN Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXG1077TN
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/3/13

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low control voltage Vctl (H) =2.8 V
• Low control current Ictl=30 A (Typ.) @2.8 V
• Low insertion loss 0.35 dB (Typ.) @900 MHz
• High power handling P1dB: 33 dBm (Typ.) @900 MHz
• High intercept point Ip3=60 dBm (Typ.)
• Small package TSSOP-10pin


Application

SPDT switch for digital cellular telephones such as JCDMA handsets.


Pinout

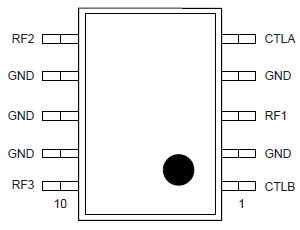

Connection Diagram


Specifications

Supply voltage

VDD

7

V

Operating temperature

Topr

35 to +85

°C

Storage temperature

Tstg

65 to +150

°C




Description

The CXG1077TN is a SPDT (Single Pole Dual Throw) antenna switch MMIC used in personal communication handsets such as JCDMA.

This IC is designed using the Sony's GaAs J-FET process.
