CXG1061TN

Features: • High gain Gc=22 dB (Typ.)• Low distortion Input IP3=13 dBm (Typ.)• Low LO input power operation PLO=15 dBm• High image suppression ratio IMR=27 dBc (Typ.)• LO input matching circuit• Single 3 V power supply operation• 10-pin TSSOP packageApplic...

product image

CXG1061TN Picture
See larger image
SeekIC No. : 004318642 Detail

CXG1061TN: Features: • High gain Gc=22 dB (Typ.)• Low distortion Input IP3=13 dBm (Typ.)• Low LO input power operation PLO=15 dBm• High image suppression ratio IMR=27 dBc (Typ.)• ...

CXG1061TN Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXG1061TN
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High gain Gc=22 dB (Typ.)
• Low distortion Input IP3=13 dBm (Typ.)
• Low LO input power operation PLO=15 dBm
• High image suppression ratio IMR=27 dBc (Typ.)
• LO input matching circuit
• Single 3 V power supply operation
• 10-pin TSSOP package


Application

Japan digital cordless telephones (PHS)

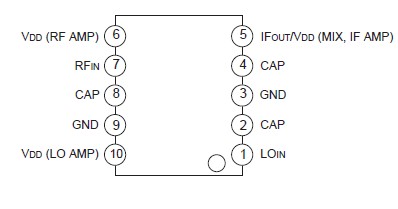

Pinout

Connection Diagram


Specifications

Supply voltage

VDD

4.5

V

Input power

PIN

5

dBm

Operating temperature

Topr

35 to +85

°C

Storage temperature

Tstg

65 to +150

°C




Description

The CXG1061TN is a low noise down conversion mixer MMIC for PHS. This IC is designed using the Sony's GaAs J-FET process.
