CXG1015N

Features: • Single positive power supply 3.0 V• Output power 20.2 dBm(Antenna switch transfer output pin power)• Low current consumption 160 mA(Output power of 20.2 dBm)• High power gain 39 dB Typ.(Output power of 20.2 dBm)• Low insertion loss 0.5 dB Typ.• Small...

product image

CXG1015N Picture
See larger image
SeekIC No. : 004318625 Detail

CXG1015N: Features: • Single positive power supply 3.0 V• Output power 20.2 dBm(Antenna switch transfer output pin power)• Low current consumption 160 mA(Output power of 20.2 dBm)• Hig...

CXG1015N Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXG1015N
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single positive power supply 3.0 V
• Output power 20.2 dBm(Antenna switch transfer output pin power)
• Low current consumption 160 mA(Output power of 20.2 dBm)
• High power gain 39 dB Typ.(Output power of 20.2 dBm)
• Low insertion loss 0.5 dB Typ.
• Small mold package 20-pin SSOP(Pin interval of 0.5 mm pitch)


Application

• Power amplifiers for PHS
• Antenna switches for PHS


Pinout

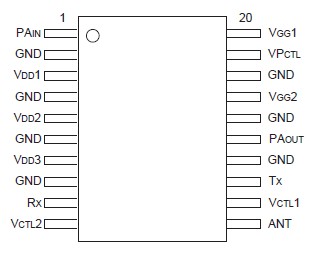

Connection Diagram


Specifications

Supply voltage

VDD

6

V

Voltage between gate and source

VGSO

1.5

V

Drain current

IDD

550

mA

Allowable power dissipation

PD

3

W

Channel temperature

Tch

150

°C

Operating temperature

Topr

35 to +85

°C

Storage temperature

Tstg

65 to +150

°C




Description

The CXG1015N is a power amplifier/antenna switch MMIC for PHS. This is designed using the Sony's GaAs J-FET process and operates at a single positive power supply.
