Product Details

Description

Features:

Digital Signal Processor (DSP) Block
• 1´, 2´, 4´ speed playback supported
• 16K-RAM
• EFM data demodulation
• Enhanced EFM frame sync signal protection
• SEC strategy-based error correction
• Subcode demodulation and Sub Q data error
detection
• Digital spindle servo
• 16-bit traverse counter
• Asymmetry compensation circuit
• CPU interface on serial bus
• Error correction monitor signal, etc. output from a
new CPU interface
• Servo auto sequencer
• Digital audio interface outputs
• Digital level meter, peak meter
• CD TEXT data demodulation
Digital Servo (DSSP) Block
• Microcomputer software-based flexible servo control
• Offset cancel function for servo error signal
• Auto gain control function for servo loop
• E:F balance, focus bias adjustment function
• Surf jump function supporting micro two-axis
• Tracking filter: 6 stages, focus filter: 5 stages
Digital Filter, DAC and Analog Low-pass Filter Blocks
• DBB (digital bass boost) function
• Double-speed playback supported
• Digital de-emphasis
• Digital attenuation
• 8Fs oversampling filter

Application

CD players

Pinout

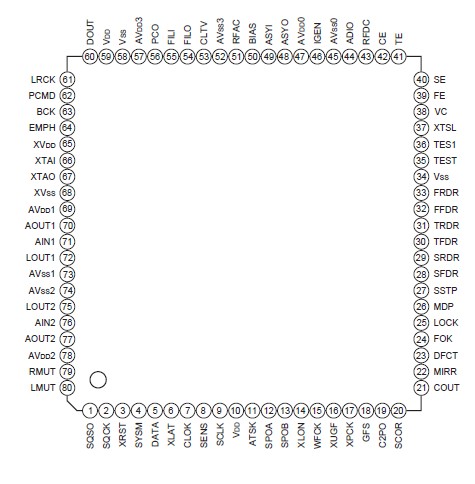

Connection Diagram

Specifications

Supply voltage	V_DD	0.3 to +4.6	V
Input voltage	V_I	0.3 to +4.6	V
	(V_SS 0.3V to V_DD +0.3V)
Output voltage	V_O	0.3 to +4.6	V
Storage temperature	T_stg	40 to +125	°C
Supply voltage difference	V_SS AV_SS 0.3 to +0.3		V
	V_DD AV_DD 0.3 to +0.3		V

Description

The CXD3017Q is a digital signal processor LSI for CD players. This LSI incorporates a digital servo, digital filter, zero detection circuit, 1-bit DAC and analog low-pass filter.
