Product Details

Description

Features:

• Base oscillation frequency 45MHz
• Electronic shutter function
• Supports various drive modes such as draft and AF mode
• Horizontal driver for CCD image sensor
• Vertical driver for CCD image sensor

Application

Digital still cameras

Pinout

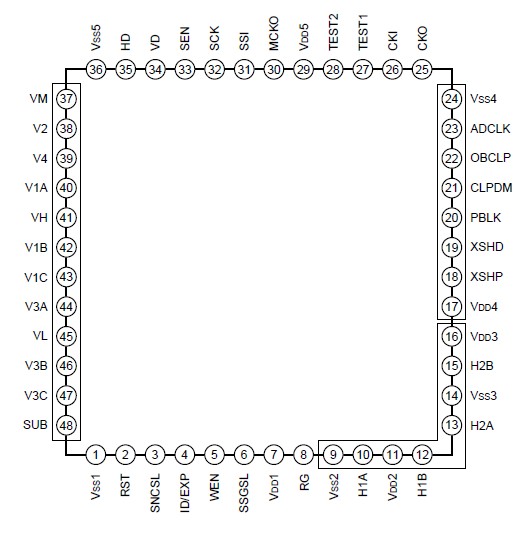

Connection Diagram

Specifications

Supply voltage	V_DD	V_SS 0.3 to +7.0	V
	V_L	10.0 to V_SS	V
	V_H	V_L 0.3 to +26.0	V
Input voltage	V_I	V_SS 0.3 to V_DD + 0.3	V
Output voltage	V_O1	V_SS 0.3 to V_DD+ 0.3	V
	V_O2	V_L 0.3 to V_SS + 0.3	V
	V_O3	V_L 0.3 to V_H + 0.3	V
Operating temperature	T_opr	20 to +75	°C
Storage temperature	T_stg	55 to +150	°C

Description

The CXD2498R is a timing generator IC which generates the timing pulses for performing frame readout using the ICX282 CCD image sensor
