CXD2492R

Features: • Base oscillation frequency 24 to 36MHz• High-speed/low-speed shutter function• Draft (sextuple speed)/AF (auto focus) drive• Horizontal driver for CCD image sensor• Vertical driver for CCD image sensorApplicationDigital still camerasPinoutSpecifications ...

product image

CXD2492R Picture
See larger image
SeekIC No. : 004318531 Detail

CXD2492R: Features: • Base oscillation frequency 24 to 36MHz• High-speed/low-speed shutter function• Draft (sextuple speed)/AF (auto focus) drive• Horizontal driver for CCD image senso...

CXD2492R Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXD2492R
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Base oscillation frequency 24 to 36MHz
• High-speed/low-speed shutter function
• Draft (sextuple speed)/AF (auto focus) drive
• Horizontal driver for CCD image sensor
• Vertical driver for CCD image sensor


Application

Digital still cameras

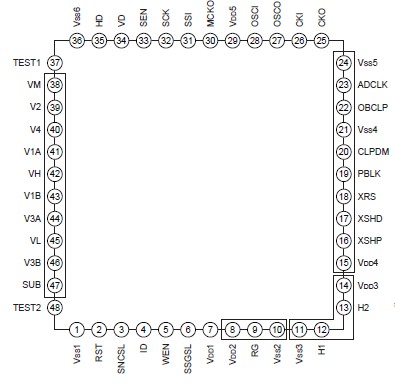

Pinout

Connection Diagram


Specifications

Supply voltage

VDD

VSS 0.3 to +7.0

 V

VL

10.0 to VSS V

VH

VL 0.3 to +26.0 V
Input voltage (digital)

VI

VSS 0.3 to VDD + 0.3 V
Output voltage

VO1

VSS 0.3 to VDD + 0.3 V

VO2

VL 0.3 to VSS + 0.3 V

VO3

 VL 0.3 to VH + 0.3 V
Operating temperature

Topr

 20 to +75 °C
Storage temperature

Tstg

55 to +150 °C



Description

The CXD2492R is a timing generator IC which generates the timing pulses for performing frame readout using the ICX252 CCD image sensor.
