Product Details

Description

Features:

• Supports EIA/CCIR standards
• Electronic iris (electronic shutter) function
• Sync signal generation function
• Backlight compensation function
• AGC flickerless circuit
• Electronic iris power on reset function
• Oscillator frequency: 13.5 MHz

Application

• Doorphones
• Small sized surveillance cameras

Pinout

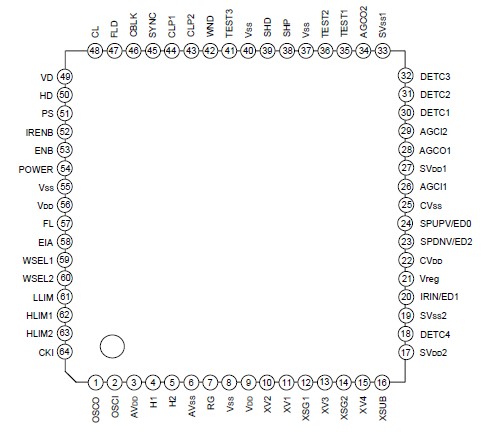

Connection Diagram

Specifications

Supply voltage	V_DD	V_SS0.5 to +7.0	V
Input voltage	V_I	V_SS 0.5 to V_DD + 0.5	V
Output voltage	V_O	V_SS 0.5 to V_DD + 0.5	V
Operating temperature	T_opr	20 to +75	°C
Storage temperature	T_stg	55 to +150	°C

Description

The CXD2409R is a timing controller for CCD camera systems which use the ICX076/077AL black-and-white CCD image sensors
