Features:

• Resolution: 9-bit ±0.5 LSB (D.L.E.)
• Maximum sampling frequency: 20MSPS
• Low power consumption: 130mW (at 20MSPS typ.)
   (Not including reference current)
• TTL compatible input
• Tri-state TTL compatible output (DVDD = 3.3V)
• Low input capacitance
• Reference impedance: 280½ (typ.)


Pinout

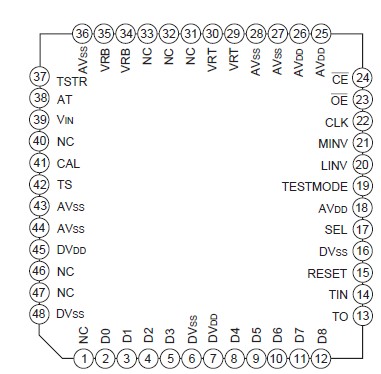

Connection Diagram


Specifications

Supply voltage

VDD

7

V

Reference voltage

VRT, VRB

VDD + 0.5 to VSS 0.5

V

Input voltage (analog)

VIN

VDD + 0.5 to VSS 0.5

V

Input voltage (digital)

VIH, VIL

VDD + 0.5 to VSS 0.5

V

Output voltage(digital)

VOH, VOL

VDD + 0.5 to VSS 0.5

V

Storage temperature

Tstg

55 to +150

°C




Description

The CXD2314R is a 9-bit CMOS A/D converter for video applications. This IC is ideally suited for the A/D conversion of video signals in TVs, VCRs, camcorders, etc.
