Features:

• Resolution 8-bit
• Maximum conversion speed 20 MSPS
• RGB 3-channel input/output
• Differential linearity error ±0.5 LSB
• Low power consumption 50 mW
   (330 ½ load at 1.2 Vp-p output)
• Single 3.3 V power supply
• Low glitch noise
• Stand-by function

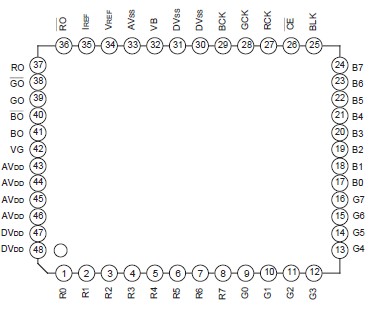

Pinout

Connection Diagram


Specifications

Supply voltage

AVDD,DVDD

7

V

Input voltage(All pins)

VIN

VDD + 0.5 to VSS 0.5

V

Output voltage (Every each channel)

IOUT

0 to 15

mA

Storage temperature

Tstg

55 to +150

°C




Description

The CXD2304R is an 8-bit high-speed D/A converter for video band use. It has an input/output equivalent to 3 channels of R, G and B. It is suitable for use of digital TV, graphic display, and others.
