CXD2093Q

Features: • Adaptive intra-field three lines comb filter• For NTSC• Vertical enhancer• Horizontal aperture correction• 8-bit A/D converter (1-channel)• 8-bit D/A converter (2-channel)• 4´ PLL• Sync tip clampApplicationY/C separation for color T...

product image

CXD2093Q Picture
See larger image
SeekIC No. : 004318486 Detail

CXD2093Q: Features: • Adaptive intra-field three lines comb filter• For NTSC• Vertical enhancer• Horizontal aperture correction• 8-bit A/D converter (1-channel)• 8-bit D/A ...

CXD2093Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXD2093Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/11

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Adaptive intra-field three lines comb filter
• For NTSC
• Vertical enhancer
• Horizontal aperture correction
• 8-bit A/D converter (1-channel)
• 8-bit D/A converter (2-channel)
• 4´ PLL
• Sync tip clamp


Application

Y/C separation for color TVs and VCRs

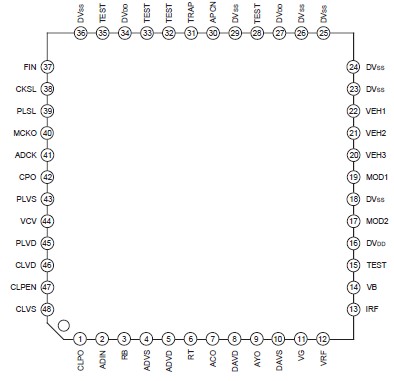

Pinout

Connection Diagram


Specifications

Supply voltage

DVDD

VSS 0.5 to +7.0

V

DAVD

VSS 0.5 to +7.0

V

ADVD

VSS 0.5 to +7.0

V

PLVD

 VSS 0.5 to +7.0

 V

CLVD

VSS 0.5 to +7.0

V

Input voltage

VI

VSS 0.5 to VDD + 0.5

V

Output voltage

VO

VSS 0.5 to VDD + 0.5

V

Storage temperature

Tstg

55 to +150

°C




Description

The CXD2093Q is an adaptive intra-field three lines comb filter for NTSC systems, and can provide high-precision Y/C separation with a single chip
