Product Details

Description

Features:

• Y/C separation by adaptive processing
• Horizontal aperture compensation circuit
• 8-bit A/D converter (1 channel)
• 8-bit D/A converter (2 channels)
• One 1H delay line
• 4 PLL
• Clamp circuit

Application

Y/C separation for color TVs and VCRs

Pinout

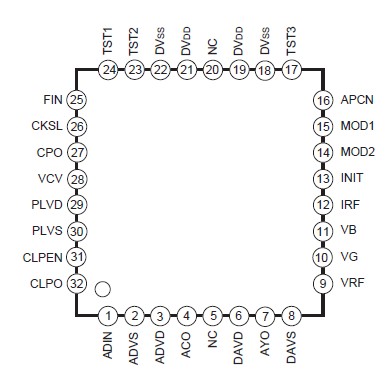

Connection Diagram

Specifications

Supply voltage	DV_DD	V_SS 0.5 to +7.0	V
	YV_DD	V_SS 0.5 to +7.0	V
	CV_DD	V_SS 0.5 to +7.0	V
	PV_DD	V_SS 0.5 to +7.0	V
Input voltage	V_I	V_SS 0.5 to V_DD + 0.5	V
Output voltage	V_O	V_SS 0.5 to V_DD + 0.5	V
Operating temperature	T_opr	20 to +75	°C
Storage temperature	T_stg	55 to +150	°C

Description

The CXD2073Q is an adaptive comb filter compatible with NTSC system, and provide high-precision Y/C separation with a single chip.
