Product Details

Description



Features:

• Adaptive intra-field Y/C separation
• M-PAL and N-PAL supported
• Vertical enhancer
• Horizontal aperture correction
• 8-bit A/D converter (1-channel)
• 8-bit D/A converter (2-channel)
• 4´ PLL
• Sync tip clamp
• Four 1H delay lines


Application

Y/C separation for color TVs and VCRs


Pinout

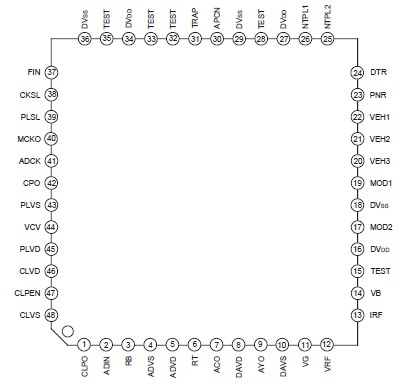

Connection Diagram


Specifications

Supply voltage

DVDD

VSS 0.5 to +7.0

V

DAVD

VSS 0.5 to +7.0

V

ADVD

VSS 0.5 to +7.0

V

PLVD

VSS 0.5 to +7.0

V

CLVD

VSS 0.5 to +7.0

V

Input voltage

VI

VSS 0.5 to VDD + 0.5

V

Output voltage

VO

VSS 0.5 to VDD + 0.5

V

Storage temperature

Tstg

55 to +150

°C




Description

The CXD2064Q is an adaptive intra-field comb filter compatible with NTSC and PAL systems, and can provide high-precision Y/C separation with a single chip.
