CXD1961Q

Features: • Dual 6 bit A/D converters• QPSKdemodulator Multi-symbol rate operation Nyquist roll off filter (a = 0.35) Clock recovery circuit Carrier recovery circuit AGC control circuit• Viterbi decoder Constraint length K =7 Punctured rate R = 1/2 7/8 Truncation length 144 Punct...

product image

CXD1961Q Picture
See larger image
SeekIC No. : 004318474 Detail

CXD1961Q: Features: • Dual 6 bit A/D converters• QPSKdemodulator Multi-symbol rate operation Nyquist roll off filter (a = 0.35) Clock recovery circuit Carrier recovery circuit AGC control circuit&...

CXD1961Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXD1961Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Dual 6 bit A/D converters
• QPSKdemodulator Multi-symbol rate operation Nyquist roll off filter (a = 0.35)
   Clock recovery circuit Carrier recovery circuit AGC control circuit
• Viterbi decoder Constraint length K =7 Punctured rate R = 1/2 7/8
   Truncation length 144 Punctured rate search function BER monitor
• De-interleaver Packet synchronization Convolutional de-interleaver
• Reed-Solomon decoder (204, 188)
• Energy dispersal descrambler
• CPU interface l2C bus interface/8 bit CPU bus TTL interface level (5V input capability)
• JTAG(IEEE std 1149.11990) test mode
• Package : QFP-100pin
• Single +3.3V Power Supply
• Symbol rate max:32MSPS min:TBD
• Power consumption TBD
• 0.4um CMOS Technology


Application

• DVB-S Set Top Box (Satellite)


Pinout

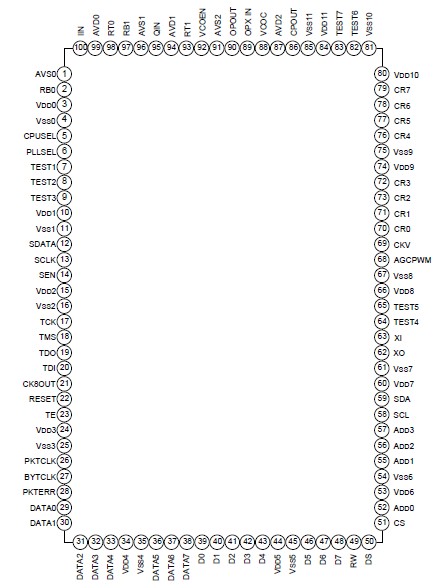

Connection Diagram


Specifications

Power Supply VDD 0.5 to +4.6 V
Input Voltage VIN 0.5 to VDD + 0.5 V
Output Voltage VOUT 0.5 to VDD + 0.5 V
I/O Voltage VI/O 0.5 to VDD + 0.5 V
CPU I/F pin Vcpuif 0.5 to +5.5 V
Storage Temperature Tstg 55 to +150 °C



Description

The CXD1961Q is a single chip DVB Satellite Broadcasting Front-end IC, including dual ADC for analog I/O inputs, QPSK demodulator, Viterbi decoder, de-interleaver, Reed-Solomon decoder and Energy Dispersal descrambler.

It is suitable for use in a DVB Integrated Receiver Decoder.
