CXD1958Q

Features: • DAVIC MMDS V1.1 and V1.3 compliant• Supports 16, 64 and 256QAM• Supports 16, 64 and 256 TCM• Internal 8-bit ADC• Interface for 10-bit external ADC• 36.125MHz nominal IF input• Symbol rate range 5 5.304Mbaud in 6MHz channels• Integrated m...

product image

CXD1958Q Picture
SeekIC No. : 004318472 Detail

CXD1958Q: Features: • DAVIC MMDS V1.1 and V1.3 compliant• Supports 16, 64 and 256QAM• Supports 16, 64 and 256 TCM• Internal 8-bit ADC• Interface for 10-bit external ADC• 36...

floor Price/Ceiling Price

Part Number:
CXD1958Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/30

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• DAVIC MMDS V1.1 and V1.3 compliant
• Supports 16, 64 and 256QAM
• Supports 16, 64 and 256 TCM
• Internal 8-bit ADC
• Interface for 10-bit external ADC
• 36.125MHz nominal IF input
• Symbol rate range 5 5.304Mbaud in 6MHz channels
• Integrated matched filtering with 0.15 roll-off factor
• ±400KHz internal carrier offset compensation with negligible losses @ 5Mbaud 6MHz channel
• Symbol timing loop designed to acquire with large offsets. Negligible losses for ±100ppm offsets
• All internal clocks derived from single fixed frequency crystal (30MHz)
• Supports fast re-acquisition mode
• 6s echo cancellation @ 5Mbaud
• Constellation points and equalizer tap values readable via I2C bus
• C/N estimation readable via I2C bus
• Low implementation loss for AWGN only:
  0.5dB @ 64QAM (using internal 8-bit A/D);
   0.3dB @ 256QAM (excluding A/D);
   measured at BER of 3x104 Pre R/S
• I = 12 and I = 204 de-interleaving
• Fast I2C bus compatible control interface
• Tuner IF-AGC output
• User programmable tuner RF-AGC output
• Dedicated 3-wire bus interface to configure up to 2 tuner synthesizers
• 3.3V CMOS technology
• Supports JTAG boundary scan
• 100-pin QFP package



Application

MMDS set-top boxes

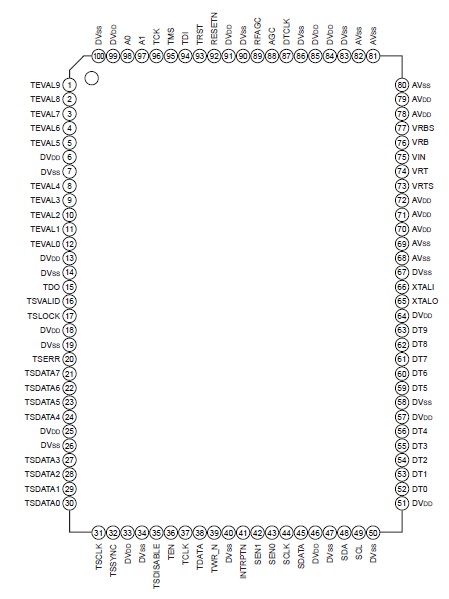

Pinout

  Connection Diagram


Specifications

Description

Symbol

Condition

MIN.

MAX.

UNIT

Digital power supply

DVDD



DVss 0.5

+4.6

V

Analog power supply

AVDD



AVss 0.5

+4.6

V

Input voltage: 3.3V only
input pins
Input voltage: 5V tolerant
input pins

VI

Pins TRST, TDI, TMS, TCK, A1,A0, VRT, VIN, VRB, XTALI
Pins SCL, SDA, RESETN, TEN, TCLK, TDATA, TWR_N,TSDISABLE, DT[9:0]

DVss 0.5
DVss 0.5

DVDD + 0.5
DVSS + 5.5

V

Output voltage: 3.3V only
pins
Output voltage: 5V tolerant
input pins

VO

Pins TEVAL[9:0], TDO, TVALID, TSLOCK, TSERR, TSDATA[7:0],
TSCLK, TSSYNC, XTALO,
DTCLK, AGC, RFAGC, VRTS,
VRBS Pins INTRPTN, SEN0, SEN1, SCLK, SDATA, SDA, DT[9:0]

DVss 0.5
DVss 0.5

DVDD + 0.5
DVSS + 5.5

V

Storage temperature

TSTG



55

+150

°C




Description

The CXD1958Q is an integrated TCM/QAM demodulator for MMDS systems using the DAVIC MMDS standard. This highly integrated device incorporates an internal 8-bit ADC, image rejection and root-raised cosine filters, all-digital symbol timing recovery PLL, adaptive decision feedback equalizer (DFE) with 10 feedforward and 30 feedback taps, 4-D TCM decoder, and DAVIC/DVB compliant forward error correction comprising (204,188) Reed Solomon decoder, a programmable de-interleaver with I = 12 and I = 204, and a de-randomiser. All internal clocks are generated from a single external 30MHz reference crystal.

Device functionality CXD1958Q also includes 3-wire bus interface for configuring up to 2 tuner synthesizers, a sigma delta tuner IF-AGC output, a user programmable RFAFC sigma delta output, spectrum inversion of the received signal for tuner compatibility, and a highly configurable MPEG2-TS interface. An I2C bus interface provides on-board configuration and status monitoring of various functions including access to the equalizer tap values and constellation points. JTAG provides boundary scan test compatibility.
