Product Details

Description

Features:

• Conforms to IEEE1394 serial bus standard
• Supports DVB and DSS transport streams
• Dedicated ports for asynchronous data/isochronous data
• Isochronous data inserted from asynchronous data port
• Smoothing buffer function
• Large capacity FIFO
   Isochronous transmit/receive FIFO 960 ´ 32 bits
   Asynchronous transmit FIFO 30 ´ 33 bits
   Asynchronous receive FIFO 36 ´ 33 bits
   Isochronous Insert Packet Transmit Buffer 47 ´ 33 bits
• CIP header automatic attachment/detection

Application

• Digital interface for D-STB
• Digital interface for D-VHS

Pinout

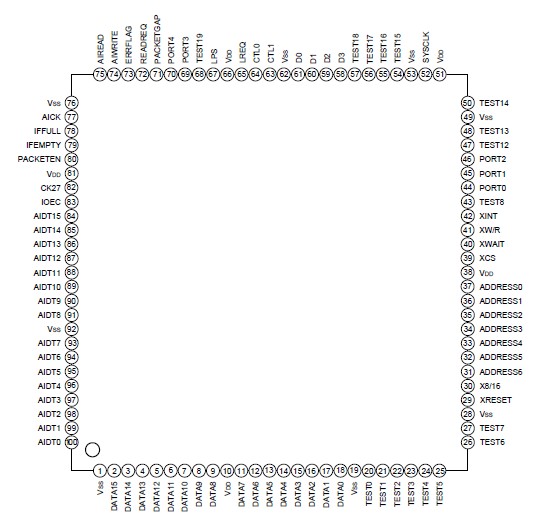

Connection Diagram

Specifications

Supply voltage	V_DD	V_SS0.5 to +4.6	V
Input voltage	V_I	V_SS 0.5 to V_DD + 0.5	V
Output voltage	V_O	V_SS 0.5 to V_DD + 0.5	V
Operating temperature	T_opr	20 to +75	°C
Storage temperature	T_stg	55 to +150	°C

Description

The CXD1948R is a Link Layer LSI conforming to the IEEE1394 serial bus standard. During transmission, the MPEG2 transport stream is time stamped, transformed to IEEE1394 format and sent to the IEEE1394 Phy IC.

During reception, the signal from IEEE1394 is kept in the built-in FIFO, synchronized to the time stamp value and output.

This IC utilizes Apple Computer's Fire Wire technology CXD1948R.
