Product Details

Description

Features:

• Conforms to IEEE1394-1995
• Single 3.3V power supply
• Supports 100/200Mbps speeds
• Automatic power down for unused ports
• Power down mode to conserve energy
• Supports short reset operation
• Supports ping for optimization of a Gap_count

Application

When used with a LINK chip (e.g. CXD1940R), allows configuration of a high-speed digital serial interface.

Pinout

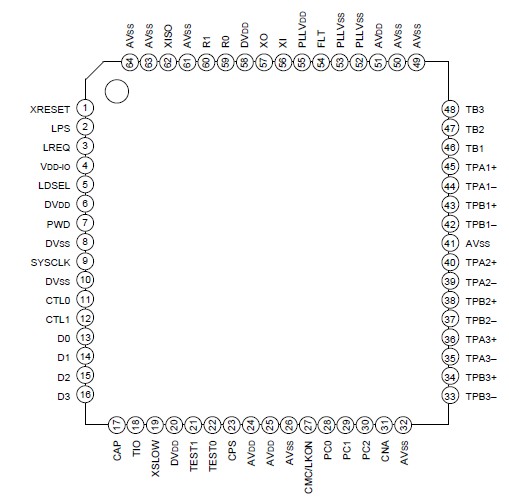

Connection Diagram

Specifications

Supply voltage	V_DD	0.5 to +4.6	V
Input voltage	V_I	V_DD + 0.5 to V_ss 0.5	V
Output voltage	V_O	V_DD + 0.5 to V_ss 0.5	V
Operating temperature	T_a	20 to +70	°C
Storage temperature	T_stg	55 to +150	°C
Allowable power dissipation	P_D	1000	mW

Description

The CXD1944R is a PHY chip which supports 100/200Mbps speeds and performs cable interface and bus arbitration. It conforms to the high performance serial bus IEEE1394-1995 standard. The structure is 0.4m CMOS and it operates on a single 3.3V power supply.
