Product Details

Description

Features:

• Fast SCSI controller (Target mode)
• Maximum transfer speed of 10MB/s (when using Fast SCSI synchronous transfer)
• SCSI overhead reduced by executing multiple SCSI sequences
• Supports SCAM Level 2
• Compatible with CD-ROM, CD-I and CD-ROM XA formats
• Real-time error correction
• Capable of handling up to 24 x speed playback
• Multiblock auto-transfer function
• Can read subcode-Q data for each byte from the sub CPU
• Real-time subcode (R to W) error correction
• Serial transfer of commands to CD DSP
• Connectable with standard DRAM of up to 8M bits(1024K bytes)
• DRAM bit width selectable for 8 bits or 16 bits

Application

CD-ROM drives

Pinout

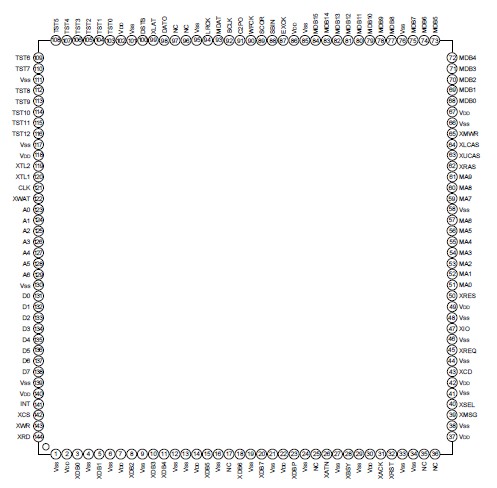

Connection Diagram

Specifications

Supply voltage	V_DD	0.5 to +7.0	V
Input voltage	V_I	0.5 to V_DD + 0.5	V
Output voltage	V_O	0.5 to V_DD + 0.5	V
Operating temperature	T_opr	20 to +75	°C
Storage temperature	T_stg	55 to +150	°C

Description

The CXD1804CR is a CD-ROM decoder LSI with a built-in Fast SCSI controller.This LSI supports 24 x speed playback.
