Product Details

Description

Features:

• Compatible with monochrome (EIA/CCIR) systems
• Built-in electronic shutter function
• Built-in driver for the horizontal (H) clock
• Built-in SG and TG functions

Application

CCD camera systems

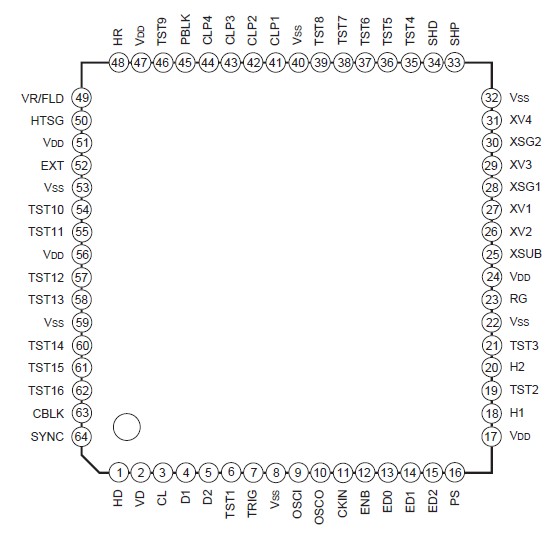

Pinout

Connection Diagram

Specifications

Supply voltage	V_DD	V_SS0.5 to +7.0	V
Input voltage	V_I	V_SS 0.5 to V_DD + 0.5	V
Output voltage	V_O	V_SS 0.5 to V_DD + 0.5	V
Operating temperature	T_opr	20 to +75	°C
Storage temperature	T_stg	55 to +150	°C

Description

The CXD1261AR is designed as one kind of sync signal, timing signal generator for CCD camera that generates the sync signals and timing signals required for a camera system that uses the monochrome CCD image sensor (760H) such as the ICX038/039 and ICX058/059.

Features of the CXD1261AR are:(1)Compatible with monochrome (EIA/CCIR) systems; (2)Built-in electronic shutter function; (3)Built-in driver for the horizontal (H) clock; (4)Built-in SG and TG functions.

The absolute maximum ratings of the CXD1261AR can be summarized as:(1)Supply voltage: Vss-0.5 to +7.0 V;(2)Input voltage: Vss-0.5 to VDD+0.5 V;(3)Output voltage: Vss-0.5 to VDD+0.5 V;(4)Operating temperature: -20 to +75 °C;(5)Storage temperature: -55 to +150 °C. If you want to know more information about it, please download the datasheet in www.seekic.com or www.chinaicmart.com .
