CXA2557R

Features: • Wide-band RF AC amplifier• Supports CD-RW playback (RF DC, RF AC, FE, TE and AL amplifiers)• 5-mode RF AC equalizer (active filter type)• RF AC equalizer boost amount and cut-off frequency adjustable• Voltage gain adjustable for RF DC, RF AC, FE, TE and AL...

product image

CXA2557R Picture
See larger image
SeekIC No. : 004318284 Detail

CXA2557R: Features: • Wide-band RF AC amplifier• Supports CD-RW playback (RF DC, RF AC, FE, TE and AL amplifiers)• 5-mode RF AC equalizer (active filter type)• RF AC equalizer boost am...

CXA2557R Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2557R
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Wide-band RF AC amplifier
• Supports CD-RW playback (RF DC, RF AC, FE, TE and AL amplifiers)
• 5-mode RF AC equalizer (active filter type)
• RF AC equalizer boost amount and cut-off frequency adjustable
• Voltage gain adjustable for RF DC, RF AC, FE, TE and AL amplifier
• RF DC amplifier offset voltage switchable
• FE and TE amplifier bias voltage adjustable
• Tracking error amplifier cut-off frequency adjustable
• Alignment amplifier
• Center error amplifier
• AGC (Automatic Gain Control) function
• APC (Automatic Power Control) function
• VC/VC IN separation
• Supports laser coupler/3 spots


Application

• CD players
• CD-ROM drives

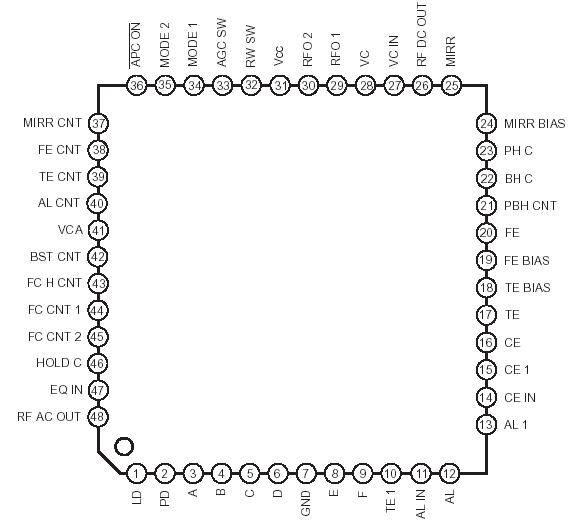

Pinout

Connection Diagram


Specifications

• Supply voltage VCC GND. . . . . . . . . . . . . . . 7 V
• Storage temperature Tstg . . . . 65 to +150 °C
• Power consumption PD . . . . . . . . . . . . . .400 mW


Description

The CXA2557R is an RF signal processing IC for CD players, CD-ROM and CD-RW (playback).
