Description



Features:

• Very few external parts
• 3-band monolithic filters (100Hz, 1kHz, 10kHz)
• The center frequencies of the band-pass filters can be adjusted
• 5 preset modes (FLAT, ROCK, VOCAL, POP, JAZZ)
• Equips with output ports to drive external LEDs
• Mute pulse output pin
• Standby feature with last preset mode memory
• Can be initialized to one of the two preset modes (FLAT or ROCK)


Application

Preset graphic equalizer for cassette tape recorder with radio and portable stereo


Pinout

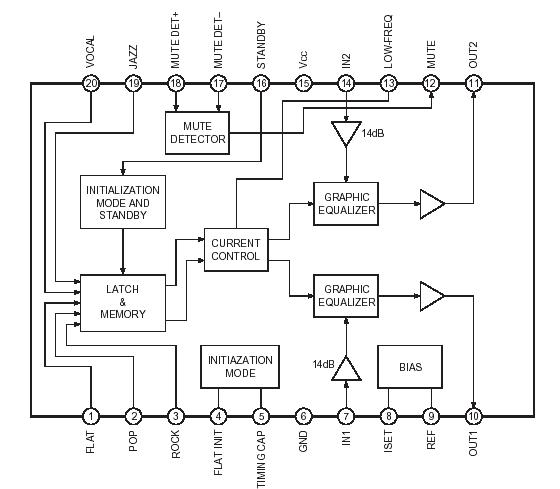

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . .12 V
• Allowable power dissipation PD  . . . . . . . . . . .  . . .600 mW
• Storage temperature Tstg  . . . . . . . . . . ..65 to +150 °C


Description

The CXA2513M is a 3-band preset graphic equalizer developed for stereo set, cassette tape recorder with radio, etc. It has 5 modes: FLAT, ROCK, VOCAL, POP and JAZZ. The selection is via 5 control pins. The center frequencies of three bands are 100Hz, 1kHz and 10kHz. The center frequencies of these bands are determined by 2 external resistors. It also has a standby feature. When the standby pin goes low, the IC stores the last preset mode. When this pin goes high, the IC restores the last preset mode before standby. CXA2513M can be initialized to any one of the two preset modes (FLAT, ROCK) upon power up.
