CXA2511AQ

Features: • Few external parts• Small package (40-pin QFP)• Same pin configuration as for the Dolby B type NR system (CXA2510AQ) and no Dolby NR system (CXA2509AQ)• Dolby B-C type NR and playback equalizer amplifier into a single chip• FORWARD/REVERSE head select swit...

product image

CXA2511AQ Picture
See larger image
SeekIC No. : 004318264 Detail

CXA2511AQ: Features: • Few external parts• Small package (40-pin QFP)• Same pin configuration as for the Dolby B type NR system (CXA2510AQ) and no Dolby NR system (CXA2509AQ)• Dolby B-C...

CXA2511AQ Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2511AQ
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Few external parts
• Small package (40-pin QFP)
• Same pin configuration as for the Dolby B type NR system (CXA2510AQ) and no Dolby NR system (CXA2509AQ)
• Dolby B-C type NR and playback equalizer amplifier into a single chip
• FORWARD/REVERSE head select switch
• Two-system (TAPE/AUX) input select switch
• Music signal interval detection level can be set by the external resistors/capacitors (2 modes).
• High-frequency cut-off of the music sensor circuit can be adjusted by the external capacitance.


Application

• Car stereo cassette decks
• Playback-only cassette decks


Pinout

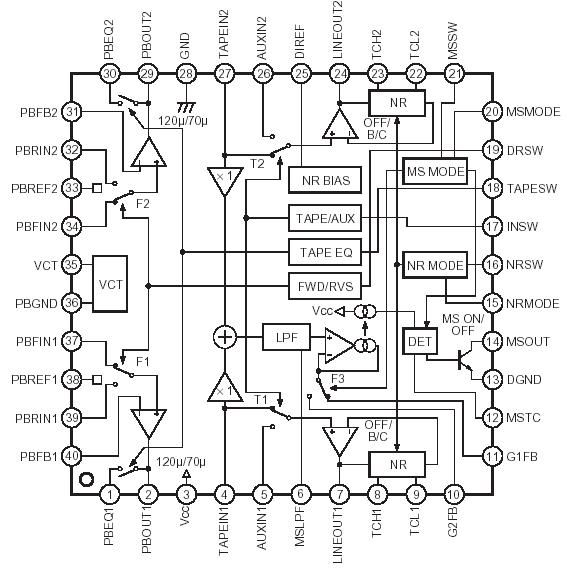

Connection Diagram


Specifications

• Supply voltage VCC . . . . . . . . . . . . . . . . . . . . . . .   12 V
• Operating temperature Topr  . . . . .  . . 40 to +85 °C
• Storage temperature Tstg  . . . . . . . . 65 to +150 °C
• Power dissipation PD  . . . . . . . . . . . . . . . . . . 430 mW


Description

The CXA2511AQ is an IC designed for use in car stereo cassette decks. Functions include Dolby B-C type noise reduction (NR) system, playback equalizer amplifier and music sensor into a single chip.
