Product Details

Description

Features:

• Loudness (Full boost at 32 dB or less of VRC)
• Volume control
   (from 0 dB to 87 dB, dB: Fine (1 dB-step)
                                              Coarse (8 dB-step)
• Balance
• Tone control
   (3-band, 2 dB-step from 15 dB to +15 dB)
• Fader
   (2 dB-step to 20 dB, 25 dB, 35 dB, 45 dB, 60 dB, dB)
• Input and gain selector (4 channels)
• Serial data control (DATA, CLK, CE)
• Single 8 V power supply
• Zero-cross detection circuit
• Timer
• Power-off mute

Pinout

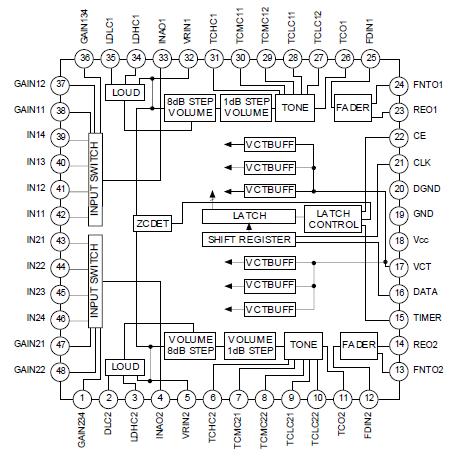

Connection Diagram

Specifications

• Supply voltage              VCC .....................13 V
• Operating temperature Topr....40 to +85 °C
• Storage temperature     Tstg...65 to +150 °C
• Allowable power dissipation
                                          PD .................350 mW
                                     (Ta = 85 °C)
Recommended Operating Condition
• Supply voltage               V_CC ...............6 to 12 V

Description

The CXA2506Q is a 2-channel electronic volume IC. A 34-bit serial data input controls the level and characteristics of the output signal. It may be used in car stereos and general audio systems.
