Product Details

Description



Features:

• Low quiescent current (VCC = 2V)
   PB: ICC = 3.2mA (typ.)
   REC: ICC = 5.2mA (typ.)
• Very few external parts
• Built-in Metal/Normal selection switch
• Small switching noise due to internal transient muting


Application

3V headphone radio cassette recorders

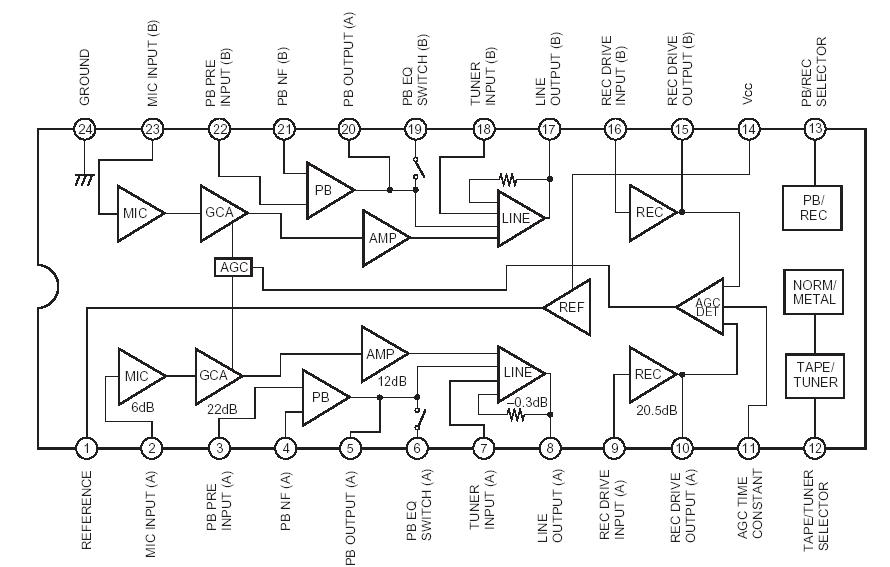

Pinout

Connection Diagram


Specifications

• Supply voltage VCC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 V
•Operating temperature Topr  . . . . . . . . . . . . . . . . . .20 to +75 °C
• Storage temperature Tstg  . . . . . . . . . . . . . . . . . .65 to +150 °C
• Allowable power dissipation PD CXA2500M  . . . . . . .. . . . .600 mW
• Allowable power dissipation PD CXA2500N  . . . . . . . . .  . .470 mW


Description

The CXA2500M/N is a dual recording/playback preamplifier system bipolar IC which has been developed for the low voltage operating cassette tape recorder.
