CXA2153S

Features: • Built-in wide-band amplifier: 180MHz@3dB (Typ.)• Input dynamic range: 1.0Vp-p (Typ.)• High gain preamplifier (15dB)• R, G and B incorporated in a single package (SDIP 30 pins)• I2C bus control Contrast control R/G/B drive control Brightness control OSD con...

product image

CXA2153S Picture
See larger image
SeekIC No. : 004318250 Detail

CXA2153S: Features: • Built-in wide-band amplifier: 180MHz@3dB (Typ.)• Input dynamic range: 1.0Vp-p (Typ.)• High gain preamplifier (15dB)• R, G and B incorporated in a single package (...

CXA2153S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2153S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Built-in wide-band amplifier: 180MHz@3dB (Typ.)
• Input dynamic range: 1.0Vp-p (Typ.)
• High gain preamplifier (15dB)
• R, G and B incorporated in a single package (SDIP 30 pins)
• I2C bus control
   Contrast control
   R/G/B drive control
   Brightness control
   OSD contrast control
   4-channel DAC control output
• Built-in gamma function
• Built-in high-speed ABL blanking
• Built-in sync separator for Sync on Green
• Built-in blanking mixing function (with blanking level fixed at 0.4V)
• Built-in OSD mixing function
• Video period detection function
• Built-in VBLK synchronous DAC refresh system


Application

High resolution computer displays


Pinout

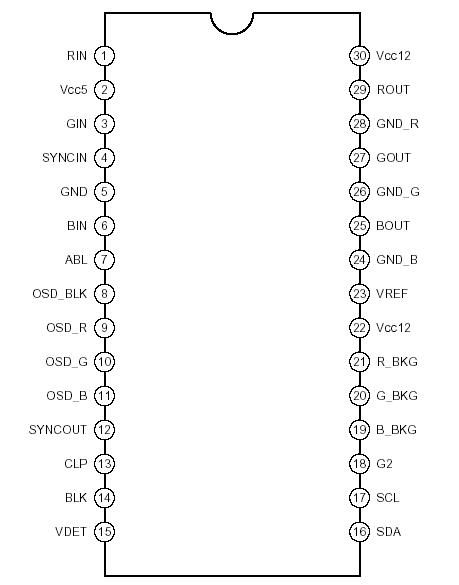

Connection Diagram


Specifications

• Supply voltage Vcc12  . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 V
                           Vcc5  . . . . . . . . . . . . . . . . . . . . . . . . . . . .5.5 V
• Operating temperature Topr  . . . . . . . . . . .. . .20 to +75 °C
• Storage temperature Tstg  . . . . . . . . . . . . . ..65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . . . . . . . . .2.05 W
• Pin voltage  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Vcc5 + 0.3V



Description

The CXA2153S is a bipolar IC developed for high resolution computer displays.
