Product Details

Description

Features:

• 3 scart independent audio/video switching (TV, VCR, AUX)
• 0 to 63dB volume control with click noise reduction
• 5 stereo audio inputs
• I²C control
• Scart Function Switching input and output
• Scart Fast Blanking for OSD
• Mono switchable to stereo on TV, VCR and AUX outputs
• On-chip +12V to +9V voltage regulator
• Logic output
• Selectable +6dB, +12dB gain on TV output
• RGB input on VCR scart
• Compatible with 2 scart Audio/Video switch CXA2126Q

Application

Digital Set Top Box

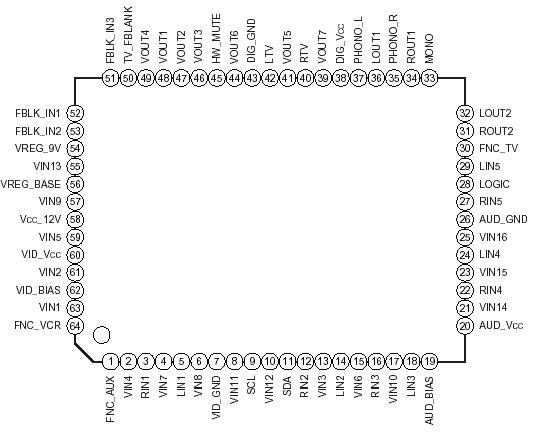

Pinout

Connection Diagram

Specifications

• Supply voltage V_CC . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12 V
• Operating temperature T_opr . . . . . . . . . . . . .20 to +75 °C
• Storage temperature T_stg . . . . . . . . . . . . . 65 to +150 °C
• Allowable power dissipation P_D . . . . . . . . . . . . . . . . 850 mW

Description

The CXA2125Q is an I²C programmable audio, video switch designed primarily for set top box applications. It interfaces from digital encoder sources to TV, VCR and auxiliary scart connectors.
