CXA2119M

Features: • Two YCbCr input systems, one RGB input system, one YCbCr output system• Three inputs, one output for composite video signal• On-chip matrix circuit for RGB signal ® YCbCr signal• On-chip 6dB amplifier• Has YM function relative to YCbCr inputApplication...

product image

CXA2119M Picture
See larger image
SeekIC No. : 004318245 Detail

CXA2119M: Features: • Two YCbCr input systems, one RGB input system, one YCbCr output system• Three inputs, one output for composite video signal• On-chip matrix circuit for RGB signal ®...

CXA2119M Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2119M
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Two YCbCr input systems, one RGB input system, one YCbCr output system
• Three inputs, one output for composite video signal
• On-chip matrix circuit for RGB signal ® YCbCr signal
• On-chip 6dB amplifier
• Has YM function relative to YCbCr input


Application

·TV


Pinout

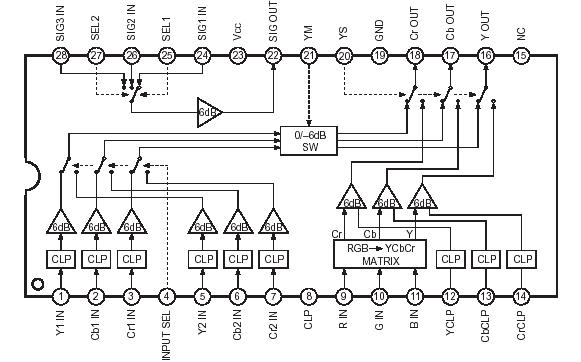

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . 12 V
• Operating temperature Topr  . . . . . . . 20 to +75 °C
• Storage temperature Tstg . . . . . . . . 65 to +150 °C
• Allowable power dissipation PD . . . . . . . . . . . . . .  1 W
•Pin voltage  . . . . . . . . . . . . . . . . . .0.3 to VCC + 0.3 V


Description

The CXA2119M is a video switch IC developed for Y color difference I/F used in televisions.
