Position: Home  > All Categories> Integrated Circuits (ICs) > CXA2111R

CXA2111R

Features: • Independent R, G and B gamma adjustment• Three-point gamma gain and position adjustment (one white side point, two black side points)• Independent R, G and B output amplifier gain and bias adjustment• Various I2C bus-based controls and adjustment of various char...

product image

CXA2111R Picture
See larger image
SeekIC No. : 004318243 Detail

CXA2111R: Features: • Independent R, G and B gamma adjustment• Three-point gamma gain and position adjustment (one white side point, two black side points)• Independent R, G and B output amp...

CXA2111R Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2111R
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Independent R, G and B gamma adjustment
• Three-point gamma gain and position adjustment (one white side point, two black side points)
• Independent R, G and B output amplifier gain and bias adjustment
• Various I2C bus-based controls and adjustment of various characteristics by external DC input
• Input signal clamp function (variable clamp voltage)
• Black side limiter adjustment
• CXA2112R adjustment output
• Precharge output (for CXA2112R)
• High frequency response
• High slew rate output


Application

• Liquid crystal projectors
• Compact liquid crystal monitors


Pinout

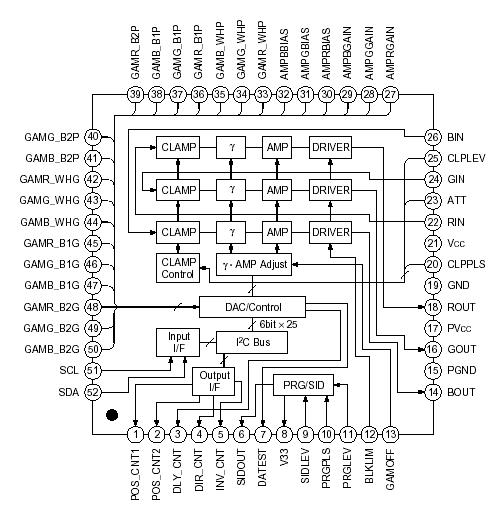

Connection Diagram


Specifications

• Supply voltage VCC . . . . . . . . . . . . . . . .0.3 to +5.5 V
• Input voltage VI . . . . . . . . . . . . . . 0.3 to VCC + 0.3 V
• Storage temperature Tstg . . . . . . . . .65 to +150 °C
• Allowable power dissipation PD . . . . . . . . . . .1000 mW


Description

The CXA2111R is a signal processor IC developed for LCD panels. Gamma correction, gain and bias, etc., can be adjusted using the I2C bus and external adjustment pins. The output of this IC is ideal as the input of the CXA2112R (LCD sample-and-hold driver IC), and the sample-and-hold position, etc., can also be adjusted using the I2C bus.
