CXA2108Q

Features: • 24 outputs: 10-bit (1,024-gradation) PWM current outputs• Maximum output current: 60mA• LED type: Common anode• 4-bit brightness function capable of switching the basic PWM pulse width in 16 steps• Time division allows driving of up to six LEDs with a sing...

product image

CXA2108Q Picture
See larger image
SeekIC No. : 004318242 Detail

CXA2108Q: Features: • 24 outputs: 10-bit (1,024-gradation) PWM current outputs• Maximum output current: 60mA• LED type: Common anode• 4-bit brightness function capable of switching the...

CXA2108Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2108Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 24 outputs: 10-bit (1,024-gradation) PWM current outputs
• Maximum output current: 60mA
• LED type: Common anode
• 4-bit brightness function capable of switching the basic PWM pulse width in 16 steps
• Time division allows driving of up to six LEDs with a single output, making it possible to configure a high definition display with few driver ICs.
• Coarse Adj. (2 bits) and Fine Adj. (8 bits) output current adjustment for each LED makes it possible to drive R, G and B using the same output from the same IC. In addition, the characteristics variance of each LED can also be corrected.
• All luminance (PWM) data and drive current data are set by writing to the internal RAM.
• PWM emitting can be performed up to 15 times per frame to realize a screen with little flicker.
• Two built-in PWM data RAM make it possible to set the next luminance data even during PWM operation.
• Abnormal internal temperature detection circuit
• Single 5V power supply
• Surface mounting package (80-pin QFP)




Application

LED display panels


Pinout

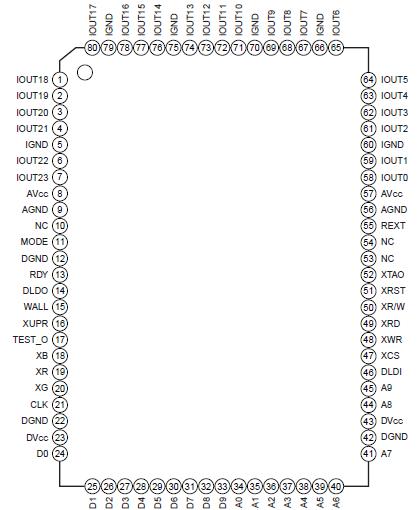

Connection Diagram


Specifications

• Supply voltage AVCC, DVCC ...............................0.3 to +6.0 V
• Digital input voltage VI_D .......................0.3 to DVCC + 0.3 V
• Digital output current Io_D ............................5.0 to +5.0 mA
• Driver output voltage V_DVR ........................0 to AVCC + 0.3 V
• Driver output current I_DVR ..............................1 to +80 mA
• Operating temperature*1 Topr ........................40 to +80 °C
• Storage temperature Tstg .............................65 to +150 °C
• Allowable power dissipation*1 (Ta = 65°C or less) PD...1.5 W
*1 When mounted on a printed circuit board


Description

The CXA2108Q is a 1,024-gradation LED driver which is ideal for full color LED displays. This IC has 24 outputs and a maximum output current of 60mA. Time division allows driving of either two or six LEDs per output by connecting an external FET or other switch. The luminance (PWM) and drive current for each LED are set using the internal RAM. The LED type is common anode.
