CXA2095S

Features: • I2C bus compatible• Sync signal processing uses a countdown system with non-adjusting H/V oscillator frequencies• Built-in deflection compensation circuit capable of supporting various wide modes• Non-adjusting Y/C block filter• Built-in AKB• Video s...

product image

CXA2095S Picture
See larger image
SeekIC No. : 004318238 Detail

CXA2095S: Features: • I2C bus compatible• Sync signal processing uses a countdown system with non-adjusting H/V oscillator frequencies• Built-in deflection compensation circuit capable of su...

CXA2095S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2095S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• I2C bus compatible
• Sync signal processing uses a countdown system with non-adjusting H/V oscillator frequencies
• Built-in deflection compensation circuit capable of supporting various wide modes
• Non-adjusting Y/C block filter
• Built-in AKB
• Video signal I/Os: Y/C separation input, Y/color difference input, analog RGB input and RGB output
• YUV SW Y signal switching function allows picture quality adjustment for the Y signal in the same manner as for the normal Y signal even when Y/color difference input is selected


Application

·Color TVs (4:3, 16:9)


Pinout

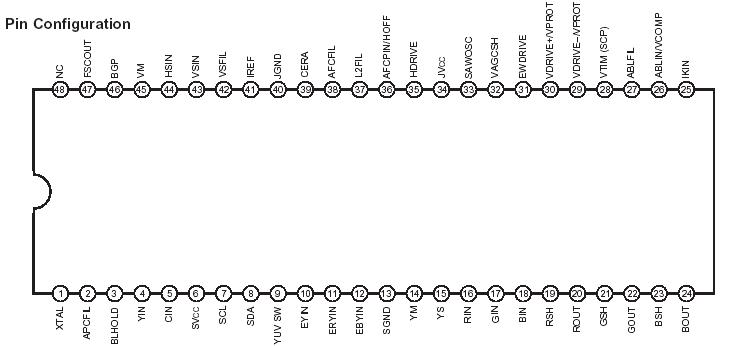

Connection Diagram


Specifications

• Supply voltage SVCC, JVCC  . . . . . . . . . . . . . .0.3 to +12 V
• Operating temperature Topr  . . . . . . . . . . . 20 to +75 °C
• Storage temperature Tstg . . . . . . . . . . . . .65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . . . . . . . .1.5 W
• Voltages at each pin . . . . . . . . .0.3 to SVCC, JVCC + 0.3 V


Description

The CXA2095S is a bipolar IC which integrates the luminance signal processing, chroma signal processing, RGB signal processing, and sync and deflection signal processing functions for NTSC system color TVs onto a single chip.

The following functions have been added to the same function IC, CXA2025S.
1) Vertical sync pull-in speed switching function
2) YUV SW Y signal switching function
3) fsc output pin
