CXA2094Q

Features: • Adjustment free of VCO and filter.• Audio multiplexing decoder and dbx noise reduction decoder are all included in a single chip. Almost any sort of signal processing is possible through this IC.• All adjustments are possible through I2C BUS to allow for automatic adj...

product image

CXA2094Q Picture
See larger image
SeekIC No. : 004318237 Detail

CXA2094Q: Features: • Adjustment free of VCO and filter.• Audio multiplexing decoder and dbx noise reduction decoder are all included in a single chip. Almost any sort of signal processing is poss...

CXA2094Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2094Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Adjustment free of VCO and filter.
• Audio multiplexing decoder and dbx noise reduction decoder are all included in a single chip. Almost any sort of signal processing is possible through this IC.
• All adjustments are possible through I2C BUS to allow for automatic adjustment.
• Various built-in filter circuits greatly reduce external parts.
• There are two systems for external inputs.
• There is an additional SAP output.


Application

•TV, VCR and other decoding systems for US audio multiplexing TV broadcasting

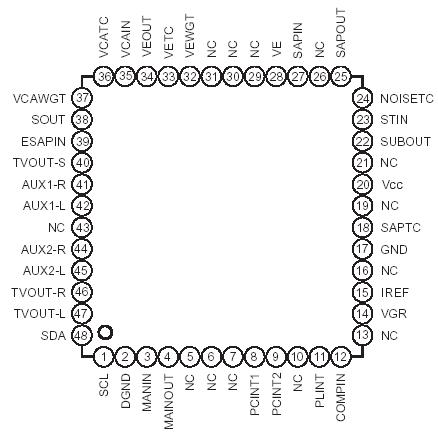

Pinout

Connection Diagram


Specifications

• Supply voltage VCC . . . . . . . . . . . . . . . . . .. . . . . . 11 V
• Operating temperature Topr . . . . . . . .20 to +75 °C
• Storage temperature Tstg . . . . . . . .  65 to +150 °C
• Allowable power dissipation PD . . . . . . . . . . . . . .0.6 W


Description

The CXA2094Q is an IC designed as a decoder for the Zenith TV Multi-channel System and also corresponds with I2C BUS. Functions include stereo demodulation, SAP (Separate Audio Program) demodulation, dbx noise reduction. Various kinds of filters are built in while adjustment and mode control are all executed through I2C BUS.
