Features:

• 3 inputs that are compatible with S2 protocol
• Serial control with I2C bus
• 5 inputs, 2 outputs
• The desired inputs can be selected independently for each of the 2 outputs
• Wide band video amplifier (20MHz, 3dB)
• Y/C MIX circuit
• Slave address can be changed (90H/92H)
• Audio muting from external pin
• High impedance maintained by I2C bus lines (SDA, SCL) even when power is OFF
• Wide audio dynamic range (3Vrms typ.)


Application

·Audio/video switch featuring I2C bus compatibility for TVs


Pinout

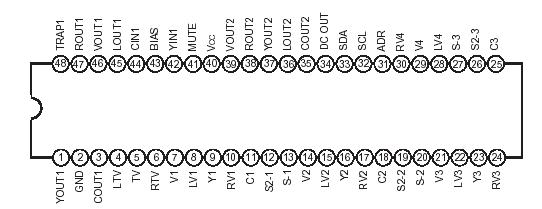

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . .12 V
• Operating temperature Topr  . . . . . . . . .20 to +75 °C
• Storage temperature Tstg  . . . . . . . . . .65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . . .1500 mW


Description

The CXA2089Q/S is a 5-input, 2-output audio/video switch featuring I2C bus compatibility for TVs. This IC has input pins that are compatible with S2 protocol.
