CXA2078Q

Features: • 3 scart independent audio/video switching (TV, VCR, AUX)• 0 to 63dB volume control with click noise reduction• 5 stereo audio inputs• I2C control with two address setting• Scart Function Switching input and output• Scart Fast Blanking for OSD• ...

product image

CXA2078Q Picture
See larger image
SeekIC No. : 004318232 Detail

CXA2078Q: Features: • 3 scart independent audio/video switching (TV, VCR, AUX)• 0 to 63dB volume control with click noise reduction• 5 stereo audio inputs• I2C control with two address...

CXA2078Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2078Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 3 scart independent audio/video switching (TV, VCR, AUX)
• 0 to 63dB volume control with click noise reduction
• 5 stereo audio inputs
• I2C control with two address setting
• Scart Function Switching input and output
• Scart Fast Blanking for OSD
• RF modulator output with Y/C mix option
• On-chip +12V to +9V voltage regulator
• 4 logic outputs


Application

Audio/Video switch featuring I2C bus compatibility for set top box


Pinout

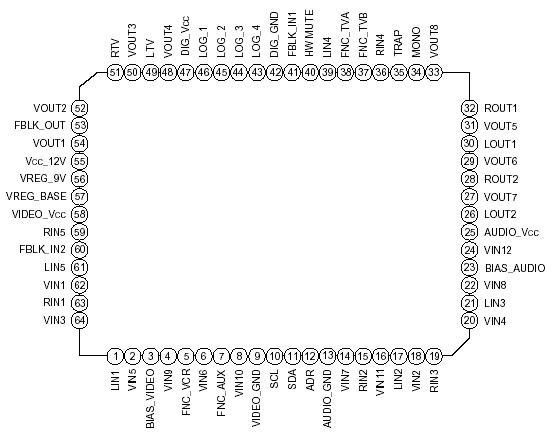

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . . . .  .12 V
• Operating temperature Topr  . . . . . . . . . . . . .20 to +75 °C
• Storage temperature Tstg  . . . . . . . . . . . .. .65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . . . . . . .500 mW


Description

The CXA2078Q is an I2C programmable audio, video switch designed for set top box applications. It interfaces from digital encoder sources to TV, VCR and auxilliary scart connectors.
