CXA2061S

Features: • Reduction in peripheral parts (ceramic oscillator, AKB sample-and-hold capacitor, etc.)• I2C bus compatible• Built-in deflection compensation circuit which is capable of supporting variaus wide modes• Non-adjusting V oscillator frequency with a countdown system&...

product image

CXA2061S Picture
See larger image
SeekIC No. : 004318222 Detail

CXA2061S: Features: • Reduction in peripheral parts (ceramic oscillator, AKB sample-and-hold capacitor, etc.)• I2C bus compatible• Built-in deflection compensation circuit which is capable o...

CXA2061S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2061S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Reduction in peripheral parts (ceramic oscillator, AKB sample-and-hold capacitor, etc.)
• I2C bus compatible
• Built-in deflection compensation circuit which is capable of supporting variaus wide modes
• Non-adjusting V oscillator frequency with a countdown system
• Non-interlace display support (even/odd selectable)
• Non-adjusting Y/C filter
• Three sets of CV inputs, two sets of Y/C inputs (can serve as both Y/C and CV inputs), one set of Y/C inputs supports an external combfilter, two sets of RGB inputs, one set of YUV inputs
• It can be outputted YUV on RGB1 inputs
• Built-in dynamic picture and dynamic color circuits
• Built-in AKB and gamma correction circuits
• FSC output


Application

·Color TVs (4:3, 16:9)


Pinout

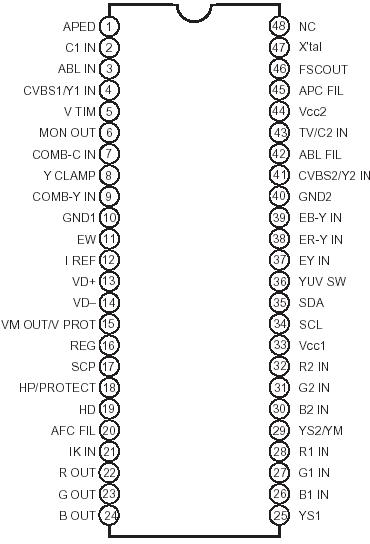

Connection Diagram


Specifications

• Supply voltage VCC1, 2  . . . . . . . . . . . . . . . . .0.3 to +12 V
• Operating temperature Topr  . . . . . . . . . . . 20 to +75 °C
• Storage temperature Tstg  . . . . . . . . . . . .65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . . . . . . . . .1.5 W
(when mounted on a 50mm *50mm board)
• Voltages at each pin . . . . . . . . . . . 0.3 to VCC1, 2 + 0.3 V


Description

The CXA2061S is a bipolar IC which integrates the luminance signal processing, chroma signal processing, RGB signal processing, and sync and deflection signal processing functions for NTSC system color TVs onto a signal chip. The IC also includes deflection processing functions for wide TVs.
