Features:

• High sensitivity made possible by a high-gain AGC amplifier
• Blanking function provided for the purpose of calibrating the CCD output signal black level
• Regulator output pin provided for A/D converter reference voltage
• Built-in GCA and AMP for amplifying video signals (chroma and line signals) from external sources
• Built-in sample-and-hold circuits for camera signals required by external A/D converters

Application

Digital CCD cameras

Pinout

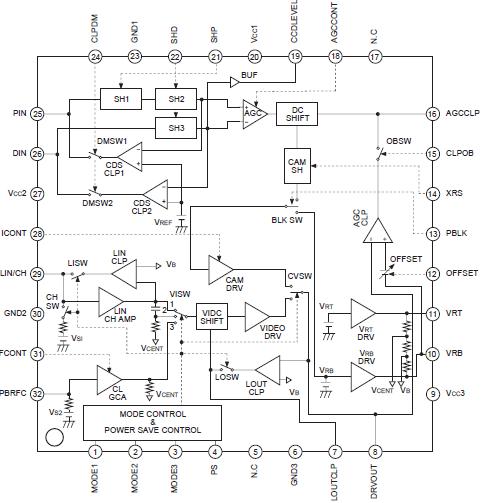

Connection Diagram

Specifications

• Supply voltage V_{CC ......................................}11 V
• Operating temperature Topr.......20 to +75 °C
• Storage temperature Tstg.........65 to +150 °C
• Allowable power dissipation P_D ...........1160 mW

Description

The CXA2056Q is a bipolar IC developed as a head amplifier for digital CCD cameras. This IC provides the following functions: correlated double sampling, AGC for the CCD signal, GCA for the lowband chroma signal, AMP for high-band chroma and line signals, A/D sample and hold, blanking, A/D reference voltage, and an output driver.
