CXA2055P

Features: • Built-in wide band amplifier (130 MHz/3 dB typ.@4 Vp-p)• Input dynamic range : 1.0 Vp-p (typ.)• R, G and B in a single package• I2C bus control Contrast control Subcontrast control Brightness control OSD contrast control Power save function Input clamp pulse pol...

product image

CXA2055P Picture
See larger image
SeekIC No. : 004318219 Detail

CXA2055P: Features: • Built-in wide band amplifier (130 MHz/3 dB typ.@4 Vp-p)• Input dynamic range : 1.0 Vp-p (typ.)• R, G and B in a single package• I2C bus control Contrast control S...

CXA2055P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2055P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Built-in wide band amplifier (130 MHz/3 dB typ.@4 Vp-p)
• Input dynamic range : 1.0 Vp-p (typ.)
• R, G and B in a single package
• I2C bus control
   Contrast control
   Subcontrast control
   Brightness control
   OSD contrast control
   Power save function
   Input clamp pulse polarity selection
   Output composite sync polarity selection
   5-channel, 8-bit D/A
   Blanking level control
• Built-in sync separator (G channel only)
• Built-in blanking mixing function
• Built-in OSD mixing function
• Built-in ABL function
• Video interval detection function


Application

·High resolution computer displays

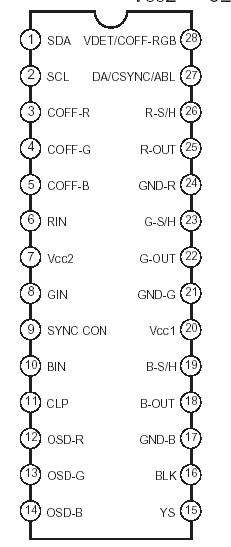

Pinout

Connection Diagram


Specifications

• Supply voltage VCC . . . . . . . . . . . . . . . . . . . . . . 14 V
• Operating temperature Topr . . . . . . 20 to +75 °C
• Storage temperature Tstg . . . . . . .65 to +150 °C
• Allowable power dissipation PD. . . . . . . . . 1794 mW


Description

The CXA2055P is a bipolar IC developed for high resolution computer displays.
