CXA2054S

Features: • Audio multiplexing decoder, dbx noise reduction decoder and sound processor (surround, volume limiter, bass · treble, volume) are all included in a single chip. Almost any sort of signal processing is possible through this IC.• All adjustments are possible through I2C BUS t...

product image

CXA2054S Picture
See larger image
SeekIC No. : 004318218 Detail

CXA2054S: Features: • Audio multiplexing decoder, dbx noise reduction decoder and sound processor (surround, volume limiter, bass · treble, volume) are all included in a single chip. Almost any sort of ...

CXA2054S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2054S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Audio multiplexing decoder, dbx noise reduction decoder and sound processor (surround, volume limiter, bass · treble, volume) are all included in a single chip. Almost any sort of signal processing is possible through this IC.
• All adjustments are possible through I2C BUS to allow for automatic adjustment.
• Various built-in filter circuits greatly reduce external parts.
• There are two channel external inputs for LSOUT outputs.
• Automatic volume control between input sources is possible through volume limiter.




Application

·TV, VCR and other decoding systems for US audio multiplexing TV broadcasting

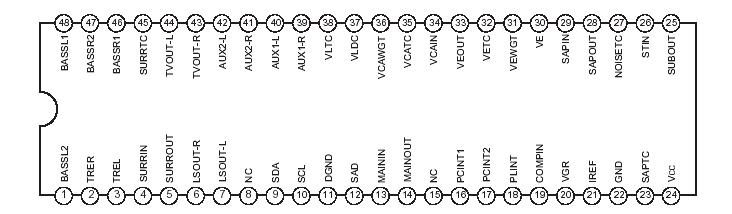

Pinout

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . .  11 V
• Operating temperature Topr  . . . . .20 to +75 °C
• Storage temperature Tstg  . . . . . .65 to +150 °C
• Allowable power dissipation PD  . . . . . . . . . .  2.2 W


Description

The CXA2054S is an IC designed as a decoder for the Zenith TV Multi-channel System and also corresponds with I2C BUS. Functions include stereo demodulation, SAP (Separate Audio Program) demodulation, dbx noise reduction and sound processor. Various kinds of filters are built in CXA2054S while adjustment, mode control and sound processor control are all executed through I2C BUS.
