Product Details

Description

Features:

• Serial data control via I2C bus
• 5 composite video input systems
• 2 Y/C (S terminal) input systems
• 3 composite video output systems
• 1 Y/C (S terminal) output system
• Input can be selected independently for each output system.
• SYNC_ID function for CV1 system input
• Built-in 6dB amplifier for CVOUT2 system output
• Built-in Y/C MIX circuit
• Slave address can be changed (90H/92H).
• High impedance maintained by I²C bus line (SDA,SCL) even when power is OFF.

Application

TVs

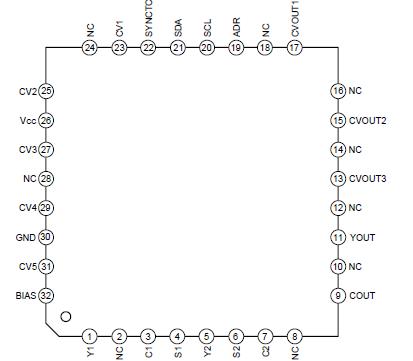

Pinout

Connection Diagram

Specifications

• Supply voltage V_CC ....................................12 V
• Operating temperature Topr ....20 to +75 °C
• Storage temperature Tstg .....65 to +150 °C
• Allowable power dissipation P_D ..............1.0 W
(when mounted on a 50mm * 50mm board)

Description

The CXA2040Q is an I²C bus-compatible 5-input,3-output video switch for TVs.
