CXA2040AQ

Features: • Serial data control via I2C bus• 5 composite video input systems• 2 Y/C (S terminal) input systems• 3 composite video output systems• 1 Y/C (S terminal) output system• Input can be selected independently for each output system.• SYNC_ID functio...

product image

CXA2040AQ Picture
See larger image
SeekIC No. : 004318215 Detail

CXA2040AQ: Features: • Serial data control via I2C bus• 5 composite video input systems• 2 Y/C (S terminal) input systems• 3 composite video output systems• 1 Y/C (S terminal) out...

CXA2040AQ Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2040AQ
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Serial data control via I2C bus
• 5 composite video input systems
• 2 Y/C (S terminal) input systems
• 3 composite video output systems
• 1 Y/C (S terminal) output system
• Input can be selected independently for each output system.
• SYNC_ID function for CV1 system input
• Built-in 6dB amplifier for CVOUT2 system output
• Built-in Y/C MIX circuit
• Slave address can be changed (90H/92H).
• High impedance maintained by I2C bus line (SDA,SCL) even when power is OFF.


Application

TVs


Pinout

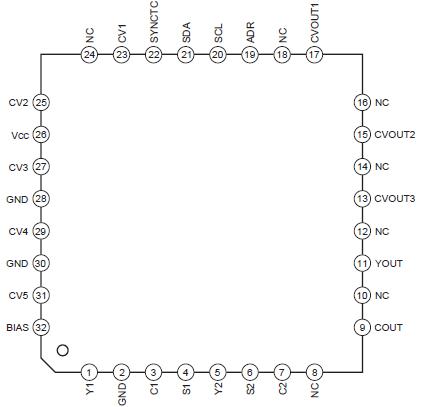

Connection Diagram


Specifications

• Supply voltage VCC .....................................12 V
• Operating temperature Topr...... 20 to +75 °C
• Storage temperature Tstg .......65 to +150 °C
• Allowable power dissipation PD ................1.0 W
(when mounted on a 50mm * 50mm board)


Description

The CXA2040AQ is an I2C bus-compatible 5-input,3-output video switch for TVs.
