CXA2027Q

Features: • Sample-and-hold circuit• Pixel-clamp and line-clamp circuit• Multiplex circuit• ADC driver circuit• Gain control amplifier circuit• Offset control circuit• Clock frequency: 1.5 to 6MHz (after multiplex)ApplicationColor image scannerPinoutSpecif...

product image

CXA2027Q Picture
See larger image
SeekIC No. : 004318211 Detail

CXA2027Q: Features: • Sample-and-hold circuit• Pixel-clamp and line-clamp circuit• Multiplex circuit• ADC driver circuit• Gain control amplifier circuit• Offset control cir...

CXA2027Q Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2027Q
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Sample-and-hold circuit
• Pixel-clamp and line-clamp circuit
• Multiplex circuit
• ADC driver circuit
• Gain control amplifier circuit
• Offset control circuit
• Clock frequency: 1.5 to 6MHz (after multiplex)


Application

Color image scanner


Pinout

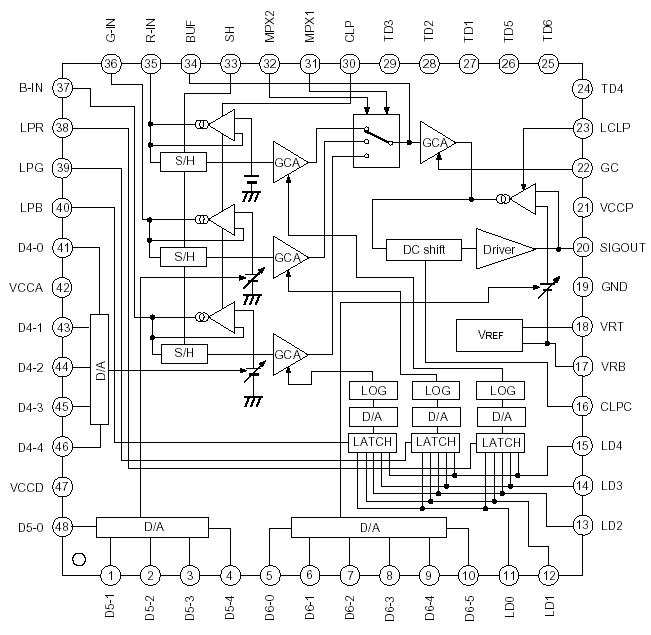

Connection Diagram


Specifications

• Supply voltage VCC  . . . .  . . . . . . . . . . . . . . . . . .0.3 to 7 V
• Input voltage VI  . . . . . . . . . . . . . . . . . .0.3 to VCC + 0.3 V
• Output voltage VO  . . . . . . . . . . . . . . . .0.3 to VCC + 0.3 V
• Storage temperature Tstg  . . . . . . . . . . . .55 to +150 °C
• Allowable power dissipation PD . . . . . . . . . . . . . . . 640 mW


Description

The CXA2027Q is an analog signal processor for CCD linear image sensor output signal. This device is suitable for 3 lines of full-color CCD linear image sensor (ILX516K/ILX518K/ILX520K: 3648 pixels ´ 3 lines/5363 pixels *3 lines/7078 pixels *3 lines).

This device has a built-in sample-and-hold, clamp, multiplex, gain control amplifier circuits and can be connected directly with external AD converters. (Sony's CXD2311AR, CXD1175AM or CXA1977R are recommended as AD converters.)
