CXA2021S

Features: • I2C BUS control• The AGC circuit is adopted to absorb volume differences between input sources and improve the S/N ratio in hearing.ApplicationTVsPinoutSpecifications• Supply voltage VCC .....................14 V• Operating temperature Topr...20 to +75 °C•...

product image

CXA2021S Picture
See larger image
SeekIC No. : 004318208 Detail

CXA2021S: Features: • I2C BUS control• The AGC circuit is adopted to absorb volume differences between input sources and improve the S/N ratio in hearing.ApplicationTVsPinoutSpecifications• ...

CXA2021S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2021S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• I2C BUS control
• The AGC circuit is adopted to absorb volume differences between input sources and improve the S/N ratio in hearing.




Application

TVs


Pinout

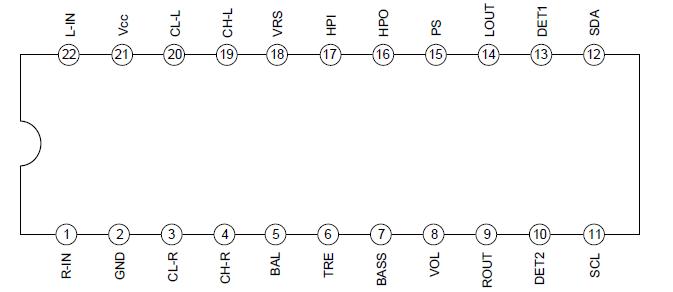

Connection Diagram


Specifications

• Supply voltage              VCC .....................14 V
• Operating temperature Topr...20 to +75 °C
• Storage temperature Tstg ...65 to +150 °C
• Allowable power dissipation PD ............0.9 W


Description

The CXA2021S is a bipolar IC developed as an I2C BUS control sound processor for TV. This IC implements surround, tone control, balance, volume, mute and AGC functions.
