CXA2016S

Features: • Power save function available (5 V power supply)• Clamp pulse output position selectable among sync interval, back porch interval, and AUTO.• Polarity information of sync signals is output.• Polarity and amplitude of input signals: Polarity Amplitude (Vp-p) V. s...

product image

CXA2016S Picture
See larger image
SeekIC No. : 004318204 Detail

CXA2016S: Features: • Power save function available (5 V power supply)• Clamp pulse output position selectable among sync interval, back porch interval, and AUTO.• Polarity information of sy...

CXA2016S Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CXA2016S
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Power save function available (5 V power supply)
• Clamp pulse output position selectable among sync interval, back porch interval, and AUTO.
• Polarity information of sync signals is output.
• Polarity and amplitude of input signals:
   Polarity Amplitude (Vp-p)
   V. separate sync: Positive/Negative 1 to 5
   H. separate sync: Positive/Negative 1 to 5
   Composite sync: Positive/Negative 1 to 5
   Sync on video:
   Sync signals part of Negative 0.2 to 0.4
   Video part 0 to 1.4






Application

• CRT display monitor


Pinout

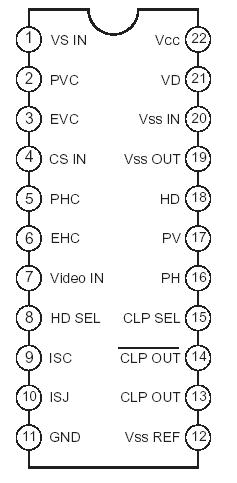

Connection Diagram


Specifications

• Supply voltage VCC  . . . . . . . . . . . . . . . . . . . . . . . . 2 V
• Operating temperature Topr  . . . . . . . 20 to +75 °C
• Storage temperature Tstg  . . . . . . . .65 to +150 °C
• Allowable power dissipation PD . . . . . . . . . . .962 mW


Description

The CXA2016S is used for sync signal identification and waveform shaping in the CRT computers display for multi-scan system. There are three types of sync input signals for identification: separate sync, composite sync, and sync on video signals.
