Product Details

Description

Features:

• Adjustment free of filter
• Audio multiplexing decoder
• Sound processor
- One external input
- Bass control
- Treble control
- Volume control
- Balance control
are all included in a single chip. Almost any sort of
signal processing is possible through this IC.
• Separation adjustment, each mode control and sound processor control are possible through I2C BUS.

Application

TVs

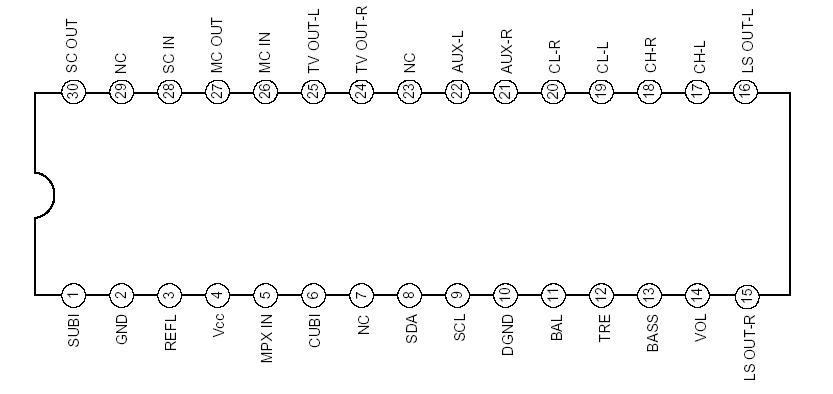

Pinout

Connection Diagram

Specifications

• Supply voltage V_CC  . . . . . . . . . . . . . . . . . . . . . . . . . .12 V
• Operating temperature T_opr  . . . . . . . . . . .20 to +75 °C
• Storage temperature T_stg  . . . . . . . . . . . .65 to +150 °C
• Allowable power dissipation P_D  . . . . . . . . . . . . . .1000 mW

Description

The CXA2013M is a bipolar IC designed as EIAJ TV sound multiplexing decoder, provides various functions including sound multiplexing demodulation, broadcast mode identification (stereo/bilingual discrimination display), volume, tone control and muting.
