CWB4500

Features: · High OFF Isolation. . . . . . . . . . . . . . . . . > 62dB @ 10MHz · Low Channel-to-Channel Crosstalk. . . > 80dB @ 10MHz · TTL Capatible Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V · Low ON Resistance. . . . . . . . . . . . . . . . . . 40ohm typical · Wide Ba...

product image

CWB4500 Picture
See larger image
SeekIC No. : 004317619 Detail

CWB4500: Features: · High OFF Isolation. . . . . . . . . . . . . . . . . > 62dB @ 10MHz · Low Channel-to-Channel Crosstalk. . . > 80dB @ 10MHz · TTL Capatible Inputs . . . . . . . . . . . . . . . . . ....

CWB4500 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
CWB4500
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High OFF Isolation. . . . . . . . . . . . . . . . . > 62dB @ 10MHz
· Low Channel-to-Channel Crosstalk. . . > 80dB @ 10MHz
· TTL Capatible Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . 5V
· Low ON Resistance. . . . . . . . . . . . . . . . . . 40ohm typical
· Wide Bandwidth. . . . . . . . . . . . . . . . . . -3.0dB @ 100MHz
· High Speed Logic Control


Application

· RF and Video Switching
· High Speed Precision Data Acquisition
· ATE


Pinout

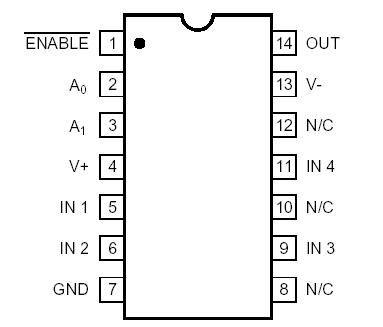

Connection Diagram


Specifications

V- Negative Supply Voltage . . . . . . . . . . . . . . . . . -20V
V+ Positive Supply Voltage . . . . . . . . . . . . . . . . . +20V
VIN Control Input Voltage Range . . . . . . . . . V+ +0.3V
V- -0.3V
IL Continuous Current, any Pin except S or D. . . 20mA
IS Continuous Current, S or D . . . . . . . . . . . . . .  30mA
IS Peak Pulsed Current, S or D, 80msec, 1%,
Duty Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mA
TJ Junction Temperature Range. . . . . . . . -55 to +125
TS Storage Temperature Range . . . . . . . -55 to +125
PD Power Dissipation (derate at 12mW/ ,
above +85oC). . . . . . . . . . . . . . . . . . . . . . . . . . 500mW


Description

The CWB4500 is a very high performance Monolithic 4 Channel Wideband/Video Multiplexer designed for switching wide bandwidth analog and digital signals. The high speed, low ON resistance and low capacitance is achieved through Calogic's proprietary CMOS/DMOS process that combines low-power CMOS control logic with very fast DMOS switching FETs.
