Features:

· High OFF Isolation. . . . . . . . . . . . . . . . >40dB @ 100MHz
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . >25dB @ 200MHz
· Fast Switching
· CMOS Compatible Inputs
· Wide Bandwidth. . . . . . . . . . . . . . . . . . . . -3dB @ 250MHz
· Low ON Resistance


Application

· RF and Video Switches
· High Frequency Data Acquisition
· High Frequency Multiplexing


Pinout

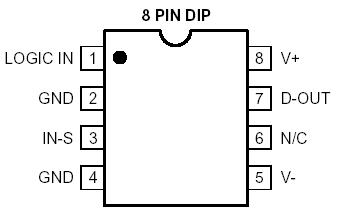

Connection Diagram


Specifications

V- Negative Supply Voltage . . . . . . . . . . . . . . . .. . -20V
V+ Positive Supply Voltage . . . . . . . . . . . . . . . . .. +20V
VIN Control Input Voltage Range . . . . . . . . .. V+ +0.3V
V- -0.3V
IL Continuous Current, any Pin except S or D.  . . 20mA
IS Continuous Current, S or D . . . . . . . . . . . . . . . 40mA
IS Peak Pulsed Current, S or D, 80msec, 1%,
Duty Cycle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mA
TJ Junction Temperature Range. . . . . . . . -55 to +125
TS Storage Temperature Range . . . . . . . -55 to +125
PD Power Dissipation (derate at 12mW/ ,
above +85). . . . . . . . . . . . . . . . . . . . . . . . . . 500mW


Description

The CWB2214 is a High Speed SPST Analog Switch designed utilizing Calogic's proprietary CMOS/DMOS processing techniques. The device features low-power CMOS input logic and level translation circuitry and high speed, low capacitance lateral DMOS switches fabricated together in a monolithic structure.
